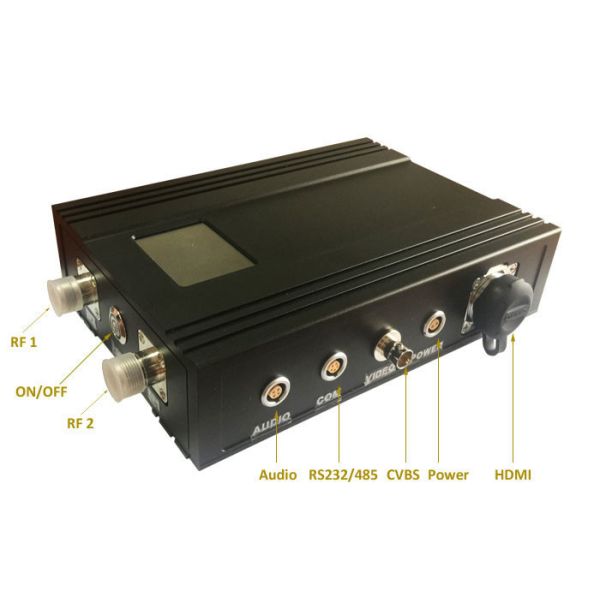

3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication
3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication
3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication
3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication
Specifications
Brand Name :
Dingshen
Model Number :
DS-HDT5000
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,00pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Frequency :
300-900Mhz (subdivided)
Modulation :
COFDM
Encryption :
AES128 bits
HD interface :
HDMI, CVBS
Transmission range :
3km NLOS; 10km LOS on ground station
Weight :
1362g
Description

Description

Report Item

3-5km NLOS COFDM HD Wireless Video Transmitter 2~5 Watt Long Range Vehicle Mobile Video Wireless Communication

COFDM Video Transmitter Description:

Model DS-HDT5000 is our powerful full HD AV signals transmitter, using the core of mobile communication technology COFDM, which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W rf power output adjustable. Support full HD 1080P(1080i) H.264 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.

Features:

● COFDM modulation technology ensure the stability of signal

● Support FULL HD quality,1080i/P@30fps;

● Built-in with HD and BNC ports;

● Provide AES128 encryption for video safety.

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

● 2-5W RF power adjustable

● Low delay time

● With four holes at the bottom of the transmitter for fixed installation

● Widely used in helicopter shooting, Live broadcast and etc…

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 2~5W adjustable
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.264/MPEG-4
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 80-100km LOS from air to ground; 1-3km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Antenna port N type

3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication

1080P HD Wireless Video Receiver with HDMI and CVBS output

3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication

Product Features:

  1. HD 1080P receiver;

  2. Supported multi-socket output;

  3. Transmit video and audio signal simultaneously.

  4. Can be with RS485/RS232 data control together.

  5. Rack design,easy to installed in Car


Specifications:

DC Input DC11V~DC16V
Working Current ≤1.1A@DC12.5V
Receiving sensitivity ≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz
BER BER≤1×10-4
Frequency input range 300MHz~4700MHz (option)
Input interface N(type),Dual antenna diversity reception technology
Modulation COFDM
RF bandwidth 4/8MHz (adjustable)
Constellation QPSK,16QAM,64QAM (optional)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K
Video formats and amplitude PAL/NTSC, 1Vp-p/75Ω
Video compression H.264/MPEG-4(autoadaptation)
Decode code stream rate 0.5-12Mbps
Video output interface Composite video RCA,HDM-I,CVBS(alternative)
Interrupt recovery Better than 2S
Video channel characteristic Differential gain DG≤1.5%, Differential phase DP≤1°
Audio output Left and right channel and stereo
Dimension 440*340*65mm(1U chassis)
Weight: 1.5kg

3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication
