Unmanned Ground Vehicles HD Video Transmitter with COFDM Modulation 10km NLOS
Unmanned Ground Vehicles HD Video Transmitter with COFDM Modulation 10km NLOS
Specifications
Brand Name :
Ding Shen
Model Number :
DS-FDD20W
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 works days
Packaging Details :
International packing
Frequency :
300-900MHz option,1.2G/2.4G/5.8GHz
Power supply :
DC11-14.5V/1.9A
Modulation :
COFDM
Weight :
5.1Kg
Size :
220*275*78mm
Description

Wireless ip network equipment 5.8G/2.4GHz outdoor wireless bridge 50km.
DS-FD020VM duplex IP transmitter adopts the latest cofdm modulation , and FDD(frequency division duplexing) technology. The downlink and uplink frequency of DS-FD020VM Ethernet IP transceiver are adjustable and customized to meet different countries’ users’ requirements.

Integrated with Ethernet port, the DS-FD020VM is suitable to connect any IP-based devices, like IP camera, computer, etc..to achieve microwave wireless IP video or other data transmission and communication. There is also with serial ports, RS232 with TTL protocol for remote wireless radio link.

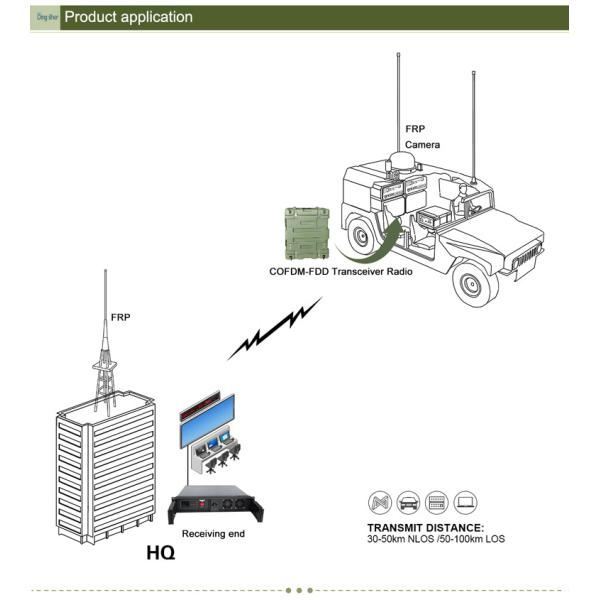

With powerful 15~20W adjustable RF power, the DS-FD020VM performs well in long range NLOS video and data transmitting and receiving in fully duplex mode. The DS-FD020VM IP transceiver has strong anti-jamming features to make it works very stable under complex environment, like in city/urban area. It's suitable for police vehicle patrolling, vessel wireless link on sea, or heavy UAV for over 150km range.

Specifications:

Frequency 300-900MHz option,1.2G/2.4G/5.8GHz
RF power 15-25Watt(adjustable)
Power supply DC11-14.5V/1.9A
Modulation COFDM 2K QPSK
RF Bandwidth 4/8MHz(adjustable)
Delay time Only 200ms
FEC 1/2 2/3 3/4 7/8
Guard Interval 1/32 1/16 1/8 1/4
Data Encryption AES 128/256 Bits
Max speed 450km/h
Video Input BNC: D1 standard definition
HDM-I: HD1080I/1080P, 720P, 576, 480
SDI:HD1080I/1080P, 720P, 576, 480
Video compression format H.264/H.265
Video Resolution 180p/1080i@60fps, 1920*1080 definition
RF Interface N type
Work environment -40℃~70℃
Video Format PAL/NTSC(self-adaption)
Transmission Distance 15km NLOS distance(ground to ground)
20km-35km LOS distance(on sea)
Size 220*275*78mm
Weight 5.1kg
