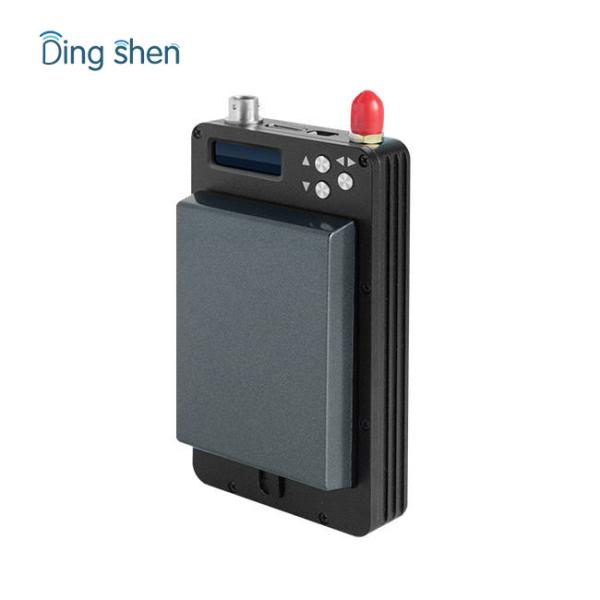

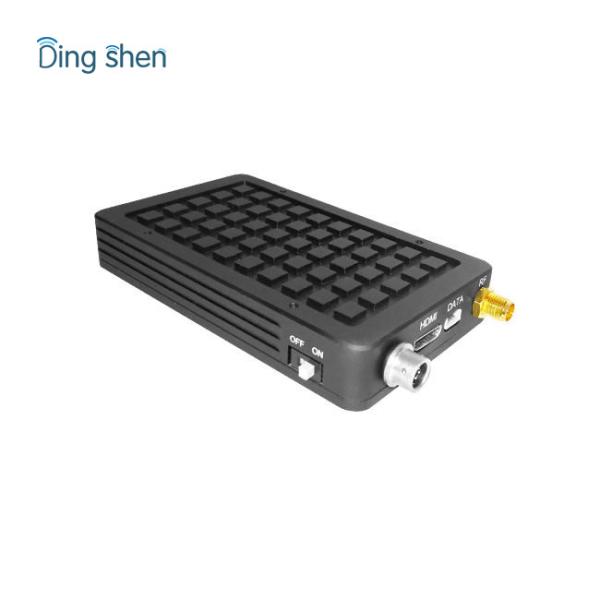

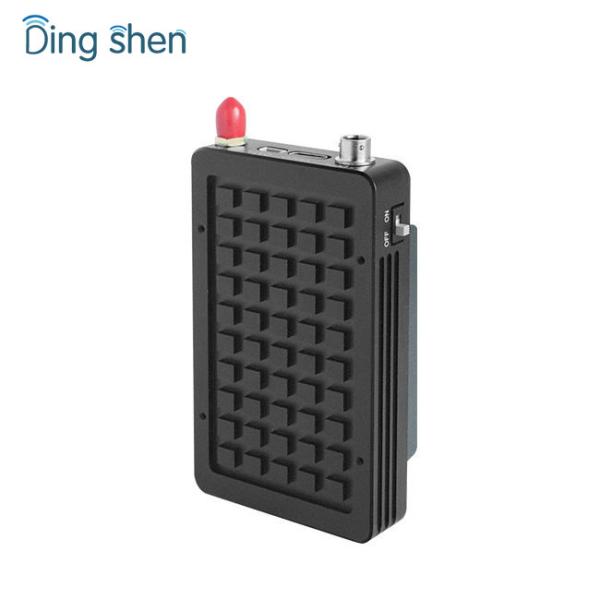

NLOS CCTV Mini COFDM wireless Transmitter HDMI To WIFI Connector UAV
NLOS CCTV Mini COFDM wireless Transmitter HDMI To WIFI Connector UAV
NLOS CCTV Mini COFDM wireless Transmitter HDMI To WIFI Connector UAV
NLOS CCTV Mini COFDM wireless Transmitter HDMI To WIFI Connector UAV
NLOS CCTV Mini COFDM wireless Transmitter HDMI To WIFI Connector UAV
NLOS CCTV Mini COFDM wireless Transmitter HDMI To WIFI Connector UAV
Specifications
Brand Name :
Ding Shen
Model Number :
DS-RM320
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Type: :
FPV COFDM transmitter, wireless video transmitter
Built-in battery: :
Battery Powered
Used in: :
audio video transmission, military surveillance, honeland s
Modulation: :
cofdm, QPSK,16QAM
Video Format: :
PAL/NTSC(adjustable)
AV cvbs interface: :
2.5mm jack for camera 3.5mm jack for AV
Description

COFDM UAV 20km long range transmitter for camera video link

COFDM full HD transmitter for UAV )is an exclusive design Mini H.264 HD wireless video transmitter with the 4th generation mobile communication core COFDM multi-carrier modulation technology,and high efficiency innovative H.264 compression code.

HD video audio monitor 50km COFDM wireless transmitter for UAV has strong light, low power consumption of OLED display control panel, integrated digital modulation, audio and video compression in combo. remote control aviation cofdm transmitter is suitable for mobile image, HD video, and it perform well in NLOS digital video transmission.

HD video audio monitor 50km COFDM wireless transmitter for UAV is not only small& light, but also has a good performance.For example, it can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

HD video audio monitor 50km COFDM wireless transmitter for UAV is widely used in UAV aviation filming,military,covert investigation,image monitor and real-time wireless video transmission.

Specification

Parameters:

Voltage DC7.2V(7.2V/1400mA standard matching mini battery)
Current 1A
Video Input

AV:3.5mm port,connect to standard resolution analog video signal

Camera:2.5mm port,connect to HD camera;

HD-SDI/HDMI:support HD1080P,720P,576,480;

with audio demultiplexing function)
Frequency 300-1400MHz(option)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 30dBm max(100-1000mW adjustable)
Data encryption AES128/256bits
Modulation COFDM
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.264
Standard Video Format PAL/NTSC (autoadaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance

1-20km max LOS(on air)

300-500m NLOS(body-worn)
Dimension 100*60*16mm
Weight 133g(without battery)
