UHF VHF COFDM Wireless AV Sender Waterproof For Maritime Affairs
UHF VHF COFDM Wireless AV Sender Waterproof For Maritime Affairs
UHF VHF COFDM Wireless AV Sender Waterproof For Maritime Affairs
UHF VHF COFDM Wireless AV Sender Waterproof For Maritime Affairs
Specifications
Brand Name :
Ding Shen
Model Number :
DS-CM30H
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
RF Power: :
20-45W
Power Supply: :
DC12V 7.8A / AC220V 5A
Audio Interface: :
BNC
Transmit Distance: :
50km Max NLOS
Output Level: :
33-47dBm(opional)
Dimension: :
400*230*160mm
Description

UHF / VHF RF Power Wireless AV Video Sender NLOS CCTV Wireless Transmitter COFDM Modulation

Long Range AV Sender Description:


DS-CM30H/CM50H/CM80H is big RF power device special design for vehicle NLOS mobile digital image transmisson. Using standard 19 inch 2U dimension appearance that very conveniently for car,boat fixed installation. Support one channel image and two audio channels. Its large rf power that depends on its long range distance transmission.

Suitable for Car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station Which can be also as a repeater, can up to 150km LOS and 50km NLOS distance if work with omni-directional antenna.

High RF Transmitter Features:

  • RF power 30-50W NLOS distance up to 50km NLOS distance;
  • Use in rescue, reconnaissance, field operations and other emergency communication system;
  • High definition and good image effects;
  • Support high speed mobile transmission, max speed 450km/h.

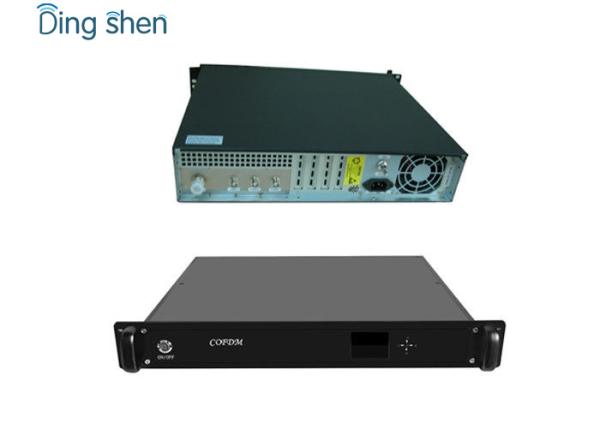

There are two types of the device for your choice, one is 2U/1U case, another one is waterproof case. Pictures as following:

UHF VHF COFDM Wireless AV Sender Waterproof For Maritime Affairs UHF VHF COFDM Wireless AV Sender Waterproof For Maritime Affairs

Specifications:

RF Indexs:
Modulation COFDM
Frequency 200-900MHz(optional)
RF Power 30~50W (adjustable)
Power Supply DC12V 7.8A / AC220V 5A
Frequency stability 0.0005%(standard)
Impedance 50Ω
Phase Noise @10KHz -75dBc
Video output U band 200-900MHz(optional) "L-16"
Audio Index:
Interface BNC
Audio output 600Ω balance/0.5v unbalance
De-emphasis 75us/50us
Frequency response 50Hz to 15KHz(+/-0.5dB)
carrier frequency 6.5MHz
Distortion 3%
FM Noise -50dB
Video index
Video Output CVBS; HDMI; SDI
Differential gain 5%
Differential phas 5
SNR 55dB
De-emphasis CCIR STANDARD PAL
Other Index
Work environment -35~+55°C
Humidity 0.96%
Size 400*230*160mm
Weight 8kg(2U chassis)

Receiver System Indicators
Frequency 200-900MHz(UHF&VHF)
Standard ISO/IEC13818-3
Impedance 75Ω
Bandwidth 2/4/6/8MHz(optional)
Video Output Analogic AV signal
Video Format 4:3,16:9
Audio Output Frequency Range 20Hz~20KHz
Resolution Max 720x576
Sound channel mode dual track
Channel mode mono
Input Level 29~80dBuV
Sample frequency 340MHz
Interface HDMI; CVBS
Volume adjustment 20 levels to adjust
Audio output Impedance 75Ω
Video output impedance 75Ω
Video Output Level 1.0Vp-p BNC
Video format 4:3, 16:9
Videography DVBTXTETSI/EN300472
Audio output frequency range 20Hz-20KHz
Voltage 110-240V / DC12-28V
Resolution 720*576
Audio Output Level 0dBm
Temperature -30~50°C
Humidity 0.96%
Weight 3KG
Size 290*190*100mm (1 U chassis)

Packaging Details
Accessories 2*antennas (customized); 1*adapter; 2*connection line.
Style Paper carton
Size Undetermined
Overall Weight ≥15kg
