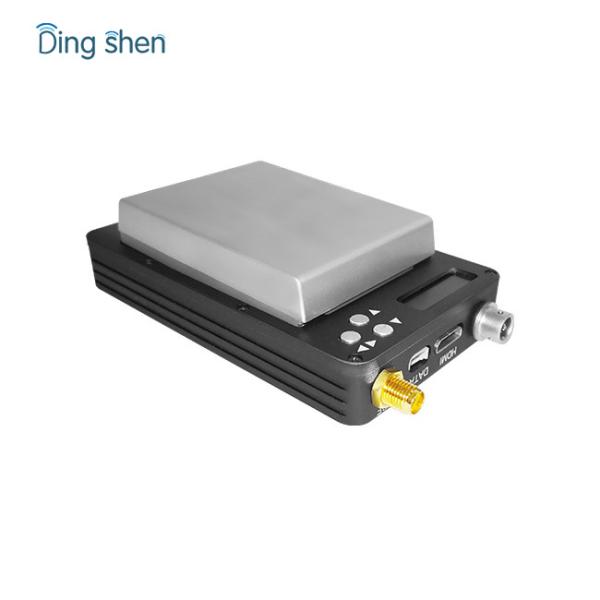

NLOS CCTV Transmitter HDMI WIFI Connector For UAV Application
NLOS CCTV Transmitter HDMI WIFI Connector For UAV Application
NLOS CCTV Transmitter HDMI WIFI Connector For UAV Application
NLOS CCTV Transmitter HDMI WIFI Connector For UAV Application
NLOS CCTV Transmitter HDMI WIFI Connector For UAV Application
NLOS CCTV Transmitter HDMI WIFI Connector For UAV Application
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDS1000A
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Type: :
FPV COFDM transmitter, wireless video transmitter
Product Type: :
Wireless system, image transmitter, voice transmitter
Special features: :
mini, digital, NLOS, AES encrypted
Built-in battery: :
Battery Powered
Used in: :
audio video transmission, military surveillance, honeland sec
Function: :
nlos or los, audio video images transmission
Modulation: :
cofdm, QPSK,16QAM
Description

NLOS 5KM Shortwave Radio Wireless Receiver Transmitter BNC Connector UAV Control System in Other Home Audio & Video

Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.

Features:

1. COFDM modulation, H.264 compression;
2. Support 1080P/720P resolution;
3. High performance,high capacity power of Li-battery(replaceable);
4. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;
5. Support NLOS,high-speed mobile transmission;
6. Highly integrated modular combination design;
7. Using high light and low power consumption of the OLED display control interface

NLOS CCTV Transmitter HDMI WIFI Connector For UAV ApplicationNLOS CCTV Transmitter HDMI WIFI Connector For UAV ApplicationNLOS CCTV Transmitter HDMI WIFI Connector For UAV Application

Specification

Parameters:

Voltage DC7.2V(7.2V/1400mA standard matching mini battery)
Current 1A
Video Input

AV:3.5mm port,connect to standard resolution analog video signal

Camera:2.5mm port,connect to HD camera;

HD-SDI/HDMI:support HD1080P,720P,576,480;

with audio demultiplexing function)
Frequency 300-1400MHz(option)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 30dBm max(100-1000mW adjustable)
Data encryption AES128/256bits
Modulation COFDM
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.264
Standard Video Format PAL/NTSC (autoadaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance

1-20km max LOS(on air)

300-500m NLOS(body-worn)
Dimension 100*60*16mm
Weight 133g(without battery)
