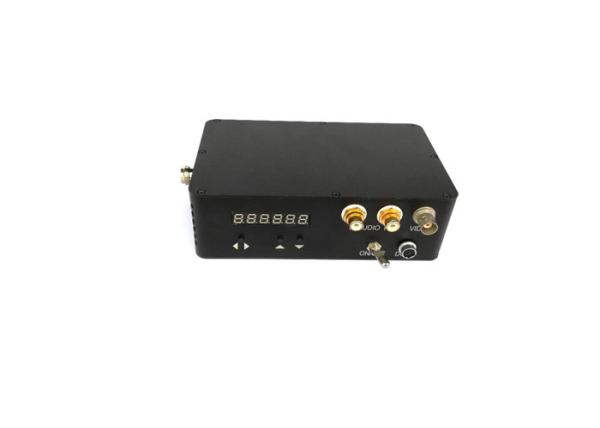

H.264 SD Video COFDM Wireless Transmitter Non Line Of Sight Long Range DC 12 - 15V
H.264 SD Video COFDM Wireless Transmitter Non Line Of Sight Long Range DC 12 - 15V
Specifications
Brand Name :
Ding Shen
Model Number :
DS-220T
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
DC Input: :
DC 12~15V
Audio Channel: :
2 Channel
Operating Frequency: :
300～2400MHz,stepping 1MHz
Video Encoding: :
H.264
Video Input: :
CVBS
Channel Bandwidth :
2.0/4.0/8.0MHz
Output Power: :
32dBm
Dimension: :
158mm*100mm*52mm
Description

H.264 cofdm video transmitter non line of sight long range SD video transmitter

Product introduction

DS-220T Low-Delay COFDM Wireless Image Transmission Transmitter, which adopts composite NTSC/PAL video preprocessing technology and efficient video coding algorithm to improve coding efficiency, reduce coding delay, algorithm optimization,anti-error rate and further improve the image quality, and the best image compression effect can be achieved at the lowest bit rate.

Features of 1080P HD wireless video data communication transceiver

  • Full HD video transmission, support1080P@60fps;
  • Support two way data transmission, and one way HD video audio transmission
  • Provide high-speed large data stream channel & adaptive dynamic allocation technique;
  • Support transparent PTP network technique;
  • Non-Line of Sight (NLOS) & high-speed mobile signals communication;
  • Standard RS-232/RS-485/RS422, RJ-45 Ethernet ,HDMI interfaces;
  • Support high standard and technical-grade application;
  • Small size, lightweight and easy to carry;
  • Aluminum outer-casing with good heat dissipation;
  • High definition OLED digital display panel,simple and concise operation;
  • Zero delay(around 10ms).

Technical Specification

Model DS-220T
Input voltage DC 12~15V
Working Current 2A_12V
Video input CVBS:480i/576i
Audio channel 2 channel
Working bandwidth 2.0/4.0/8.0MHz
Operating frequency 300～2400MHz,stepping 1MHz
Output power 32dBm
RF interface N type
video encoding H.264
Modulation COFDM
Constellation QPSK
Parameter control method Set related parameters through LED digital tube
Dimension 158mm*100mm*52mm
