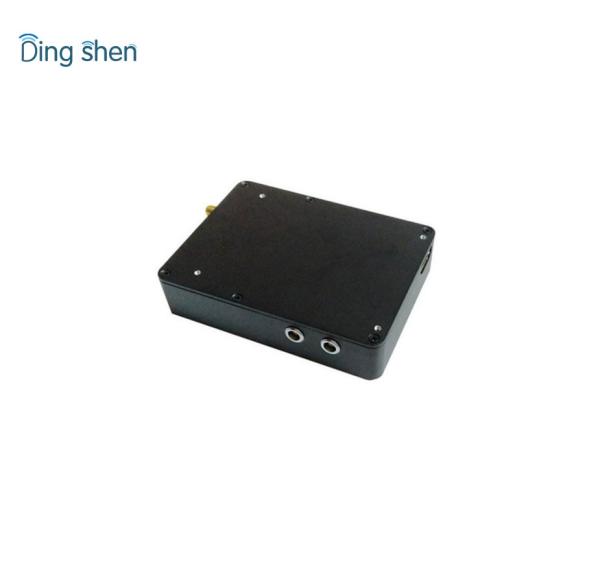

20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
china
MOQ :
1 Set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
1,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Modulation: :
COFDM
Frequency: :
300-900MHz (optional)
Video Decoding: :
H.264/H.265
Bandwidth: :
2/2.5/4/8MHz (adustable)
Video Port: :
HDMI
Weight: :
900g
Description

Mini UAV Video Link 20km HD Wireless Video Transmitter H.265 Coding AES Encryption

Features:

1. COFDM modulation, H.264 compression;


2. Support 1080P/720P resolution;


3. High performance,high capacity power of Li-battery(replaceable);


4. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;


5. Support NLOS,high-speed mobile transmission;


6. Highly integrated modular combination design;


7. Using high light and low power consumption of the OLED display control interface.

Description:

DS-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.

The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular,COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.

Transmitter Specification:

Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;
Data serial port RS485RS232/TTL ,one-way communication
Frequency 300-1500MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1Watt(30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃～75℃
Dimension 100*60*16mm
Weight 133g(without battery)

20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter
