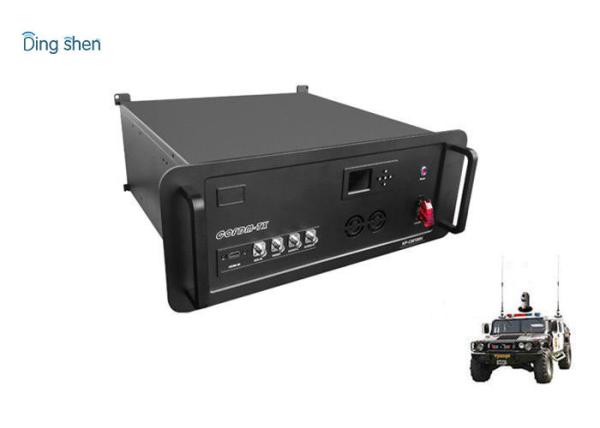

100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted
100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted
100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted
100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted
Specifications
Brand Name :
Ding Shen
Model Number :
DS-CM100H
Place of Origin :
china
MOQ :
1Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export packing standard
Frequency: :
300-900Mhz Or Other Band Customized
Modulation: :
COFDM
Interface: :
HDMI; HD-SDI; BNC
Distance: :
100km Max NLOS
RF Power Output: :
100W
Dimension: :
575*505*360mm
Description

80-100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted

Hight Power COFDM Wireless Video Transmitter:

Introduction of long range cofdm army wireless video transmitter and receiver:

Long range cofdm army wireless video transmitter and receiver is a new design ultra-low latency COFDM digital video transmitter from Shenzhen Safe Guard. Designed with 3 video ports, HDMI, SDI, and BNC on the transmitter, which is perfect for analogue or digital cameras.

Feature:

* COFDM modulation,different carrier frequencies technology

* Low latency

* great transfer rate for uplink and downlink

* Built in with HDMI, SDI, Ethernet, serial ports

* Dual frequency is ideal for long-distance required

* Dynamic AES encryption 128bits

* Narrowband bandwidth 1M/2M/4M/8MHz available

* Work well in NLOS fast moving condition



Transmitter configuration panel:
100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted
Specification:

Voltage DC28V
Bandwidth 2/2.5/4/8MHz
Frequency video 550MHz-600MHz stepped in 1MHz; other Frequency can be customized
Frequency data (Option) 150MHz or other band
Modulation COFDM 2K
RF power 100W
FEC 1/2, 2/3, 3/4, 7/8
Guard interval 1/32, 1/16, 1/8, 1/4
Video port BNC and SDI and HDMI
Data port (Option) RS232/485
Video resolution 1080P/i & 720P/i
Video coding H.264
Video format PAL/NTSC
Encryption AES128/256bits
Dimension 575*505*360mm
Weight 26kg
Parameter setting user manually setting via LCD display

100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted

100km NLOS COFDM Wireless Transmitter 100W Vehicle Mounted Digital Video Sender Encrypted

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
