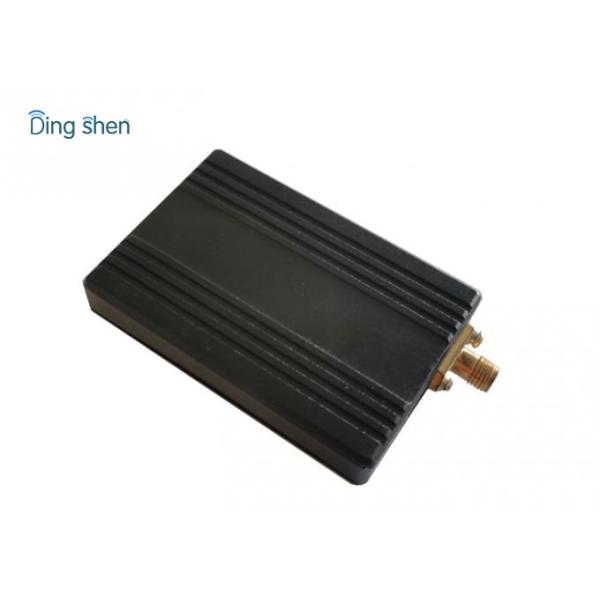

COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
COFDM AHD Wireless Audio Video Sender 200mW Type C Input
Specifications
Brand Name :
Ding Shen
Model Number :
DS-AHD200MW
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
1,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Modulation: :
COFDM
Compression: :
H.265 / H.264
Dimension: :
40*60*12mm
RF Power: :
200mW
Weight: :
420g
Video Input: :
Type C
Description

Long Range COFDM Video Transmitter AHD Wireless Audio Video Sender 200mW​

COFDM Video Transmitter Introduction:

DS-AHD200MW 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.265 encoding format and HD input as well support stereo balance audio input and narrowband transmission system.

Robot Transmitter Features:

  1. COFDM modulation;
  2. Low delay, lightweight, live broadcast;
  3. Support Full-HD quality image;
  4. Support 1080i/1080P HD transission;
  5. Built-in with HDM-I or HD-SDI interface(single selection);
  6. Support composite standard video and balanced audio input;
  7. All parameters can be adjusted by user;

Specification:

Voltage DC5V~DC14V
Current ≤0.6A DC12V
Video input CVBS: support HD1080P,720P,576,480; 30FPS
Control input RS232; 19200
Frequency 300mHz-900mHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 200mW
Data encryption AES 128bit (user-defined password)
Modulation COFDM
Modulated mapping QPSK(4QAM); 16QAM; 64QAM
Bandwidth 2/4/6/8M (adjustable)
FEC 1/2, 2/3, 3/4, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Video Compression H.265/H.264/MPEG-4
Standard Video Format PAL/NTSC (auto adaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance 1-40km max LOS (on air); 1-2km on ground station
Dimension 132*90*26mm
Weight 420g

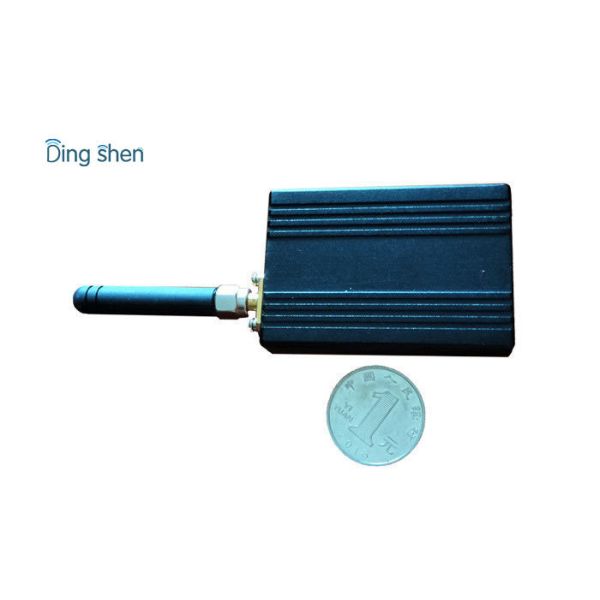

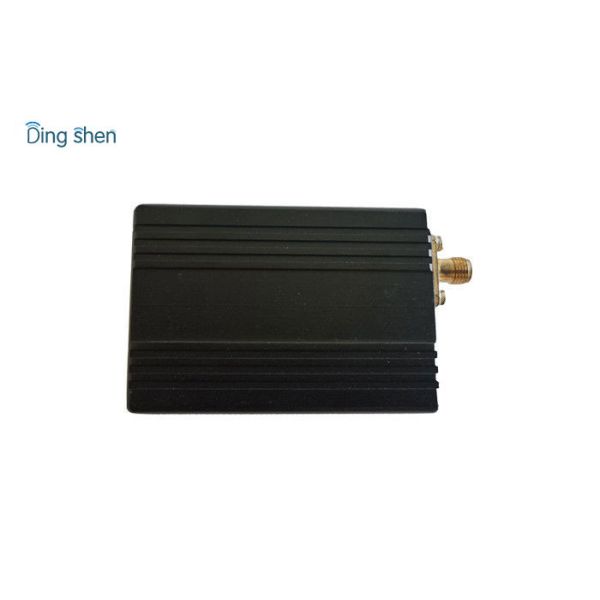

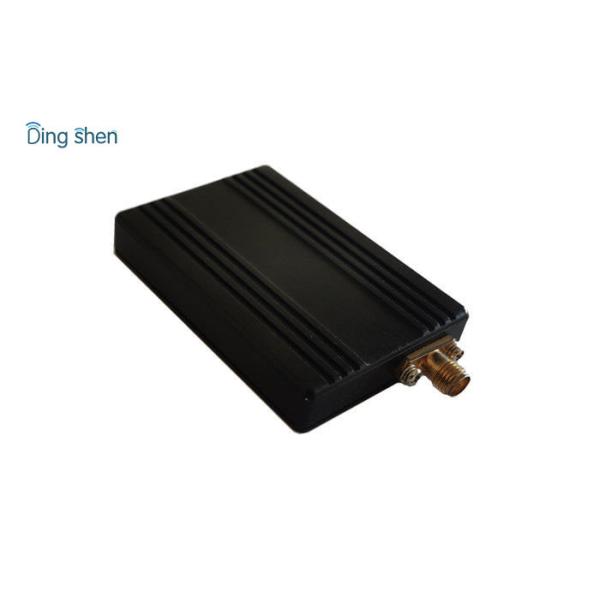

COFDM AHD Wireless Audio Video Sender 200mW Type C InputCOFDM AHD Wireless Audio Video Sender 200mW Type C InputCOFDM AHD Wireless Audio Video Sender 200mW Type C InputCOFDM AHD Wireless Audio Video Sender 200mW Type C InputCOFDM AHD Wireless Audio Video Sender 200mW Type C Input

Our Service

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
