2 Watt 1080p Video Transmitter , 58dB Wireless Hd Transmitter Receiver
2 Watt 1080p Video Transmitter , 58dB Wireless Hd Transmitter Receiver
2 Watt 1080p Video Transmitter , 58dB Wireless Hd Transmitter Receiver
2 Watt 1080p Video Transmitter , 58dB Wireless Hd Transmitter Receiver
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT3W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
167*90*25mm
Certification :
CE/FCC
Model Number: :
DS-HDT3W
DC Input: :
DC11V~DC16V
Modulation :
COFDM
Power output: :
1-3W(adjustable),in 1dB step
Encryption: :
AES128/256bits
FEC: :
1/2,2/3,3/4,5/6, 7/8
Product name: :
3 watt UAV video transmitter DS-HDT103
Working Current: :
≤1.1A DC12.5V
RF bandwidth: :
4/8MHz(adjustable)
Description

Luxury 2020 TP-Link Powerline GPS Survey Antenna Long Range Video Wireless Hidden Cameras Spy Transmitter for Fire Fighting

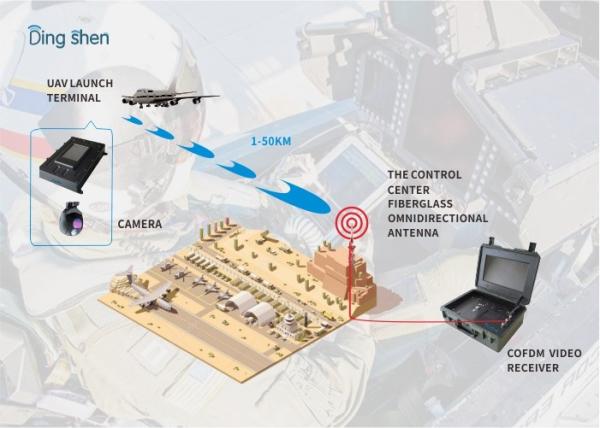

ultra-low latency H.264 COFDM HD portable wireless video transmitter, adopted the 4th generation multi-carrier modulation technology and highly efficient/ innovative H.264 compression coding. Greatly improve coding efficiency,decrease coding delay, optimize algorithm, anti-bit error rate and improve image quality, which use the lowest bit rate to achieve the best image compression.

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V

Transmitter section
Frequency range Output 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-3W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HDMI/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB

Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDMI(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HDMI 1.3
HDCP protocol Yes

Encoding support
AV rate 64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g

Features:
1. Low delay, lightweight, live broadcast;
2. Support Full- HD quality image;
3. Support 1080i/1080P HD transmission;
4. COFDM modulation;
5. Built-in with HDMI or HD-SDI interface(single selection);
6. Support composite standard video and balanced audio input;
7. All parameters can be adjusted by user;
