Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT5000
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Certification :
CE/FCC
Place of Origin: :
china
Model Number: :
DS-HDT5000
Frequency: :
300-900Mhz or other frequency customized
Product name: :
HD Cofdm analog wireless audio video transmitter and receiver
Encryption :
AES 128 bits
Consumption :
<40W
Description

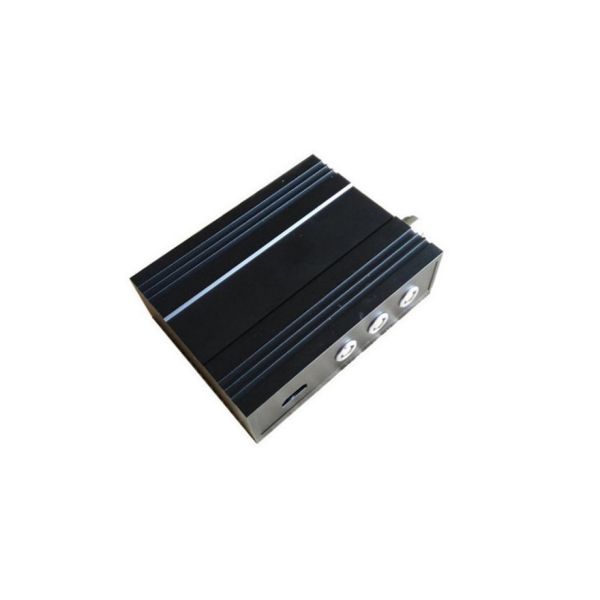

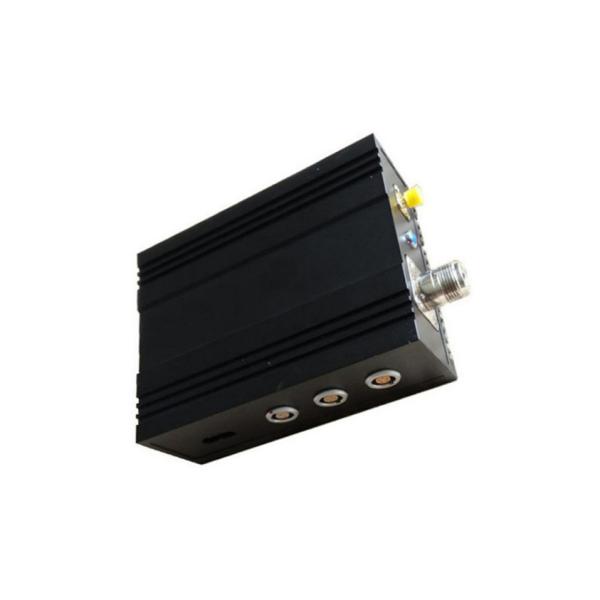

60km Drone Video Transmitter

transmitter is an innovative product of wireless HD links for advanced and professional UAV drone applications. brings broadcast quality and robustness standards to the rapidly evolving and diversifying UAV aerial video arena. All professional UAV HD applications now share the same requirements- a lightweight, compact, robust wireless HD video downlink. links deliver all and more!

Designed from the ground up for drone applications, transmitter delivers the performance and reliability required for getting any job done; anywhere, anytime. transmitter supports up to 60km wireless video downlink transmission from drone/UAV to ground control station with high quality and stable image signal. It is also suitable for image transmission with the ground, and can be used in the fields of public security investigation, military operations, fire special robots, etc.

.

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 2~5W adjustable
Video input HDMI,CVBS,AHD,SDI (option)
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Receiver parameter:

Frequency 300-900Mhz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
Working Temperature -20℃~+50℃
Dimension 483*300*44mm
Weight 1.5kg

Product Features

1. COFDM modulation;
2. H.264/MPEG self-adaption video compression code;
3. Video stream can up to 16.68Mbps;
4. With 4 holes on the bottom, convenient for users to fix the installation;
5. HDMI, SDI, BNC can be customized for user's to options;
