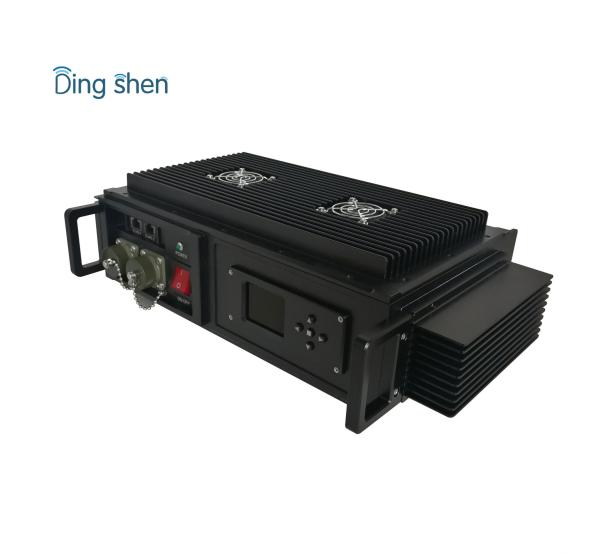

20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel
20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel
20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel
20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel
20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel
20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT30W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
320*210*110mm
Certification :
CE/FCC
Frequency/data: :
300-3300MHz (subdivision)
Modulation: :
FDD-COFDM 2K
RF Bandwidth: :
1/2/4/8MHz
Encryption/decryption Mode: :
AES128 Bits(user-defined Password)
RF Power: :
30W
Weight: :
8.7kg
Description

military surveillance ethernet radio link for best ip cameras

DS-HDT30W is a new COFDM digital transmitter receiver with Frequency-division duplexing ( technology, designed with dual-mode RF transceiver system which operate at different carrier frequencies ideal for long range communication in network solution. The F technique uses different frequency bands for video radio sending and receiving with no interference.

Features of military surveillance ethernet radio link for best ip cameras

* COFDM modulation,different carrier frequencies technology

* Low latency

* great transfer rate for uplink and downlink

* Built in with HDMI, SDI, Ethernet, serial ports

* Dual frequency is ideal for long-distance required

* Dynamic AES encryption 128bits

* Narrowband bandwidth 1M/2M/4M/8MHz available

20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel

20km NLOS IP COFDM HD Video Transmitter 30W For Vehicle / Vessel

Feature:

  • COFDM modulation,FDD technology
  • Great transfer rate for uplink and downlink
  • Transparent IP Ethernet and serial data sync telecommunication
  • 20W rf power for bi-directional video data communication
  • Military level 128bit dynamic AES encryption
  • RF Narrowband 1/2/4/8MHz available
  • Integrated design,efficient heat dissipation,low consumption
  • Easy deployment,Simple operation

Specifications:

Model KP-FDD30W
Power supply DC28V/6.8A
TX output frequency 675MHz (can be customized 300-3300MHz),step in 1MHz
RX output frequency 715MHz (can be customized 300-3300MHz),step in 1MHz
RF bandwidth 1/2/4/8MHz
RF power output 45dBm
Encryption/decryption mode AES128 bits(user-defined password)
Modulation COFDM 2K
Transfer rate 2x30 Mbit/s uplink and downlink
RF connector N type *2
Ethernet Standard RJ45 port *2
Serial port RS232 serial port
Baud rate 115200bps maximum
Two way audio Aviation plug
LCD panel with keypad Easy to set the related parameters
Dimension 320*210*110mm
Weight 8.7kg
Transmit distance 10-20 km NLOS / 20-40km LOS on ground level
