1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT3W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
167*90*25mm
Certification :
CE/FCC
Place of Origin: :
Guangdong,china
Model Number: :
DS-HDT3W
DC Input: :
DC11V~DC16V
Modulation: :
COFDM
Power output: :
1-3W(adjustable),in 1dB step
Encryption: :
AES128/256bits
Product name: :
3 watt UAV video transmitter DS-HDT103
Description

60km Drone Video Transmitter SFGT-HD103

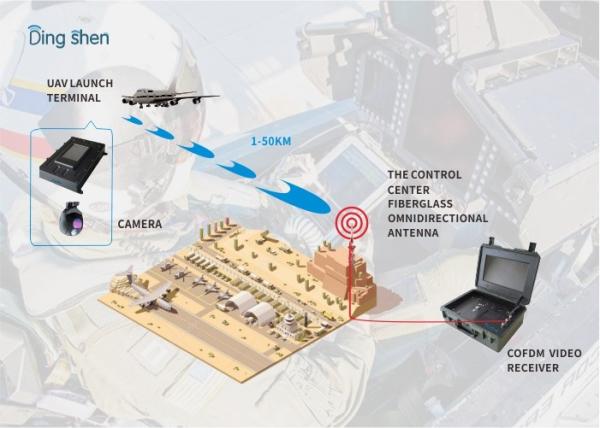

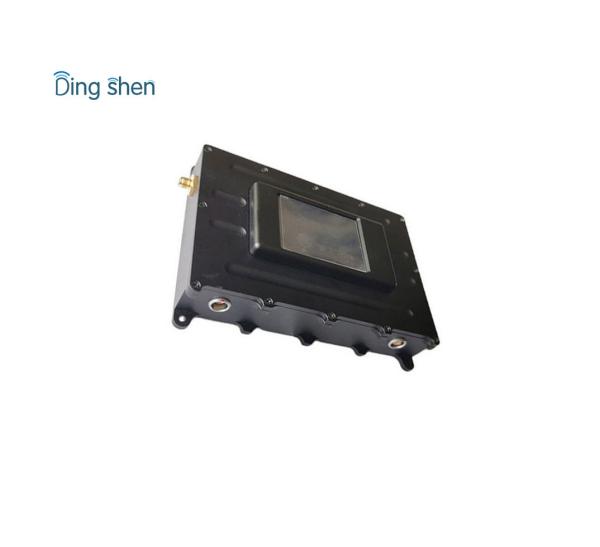

DS-HDT3W transmitter is an innovative product of wireless HD links for advanced and professional UAV drone applications. DS-HDT3W brings broadcast quality and robustness standards to the rapidly evolving and diversifying UAV aerial video arena. All professional UAV HD applications now share the same requirements- a lightweight, compact, robust wireless HD video downlink. DS-HDT3W links deliver all and more!

Transmitter parameter:

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V

Transmitter section
Frequency range Output 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-3W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HDMI/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB

Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDMI(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HDMI 1.3
HDCP protocol Yes

Encoding support
AV rate 64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g

1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction

1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction1080P COFDM Professional Wireless Video Transmitter And Receiver 3Watt Good Diffraction
