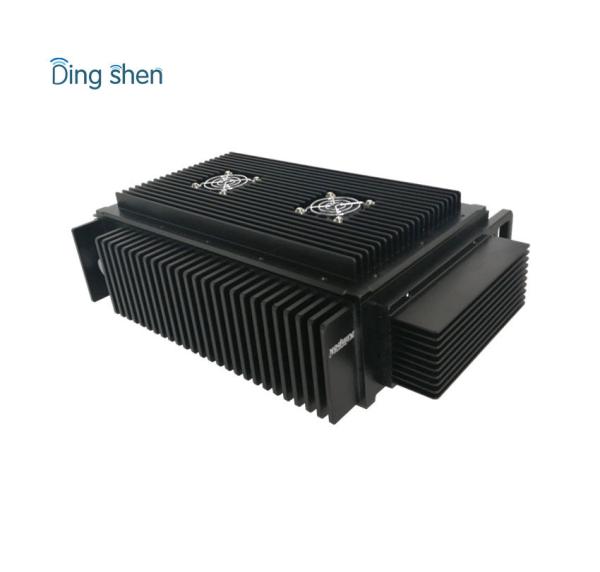

20W Rugged COFDM Wireless Transmitter 10-15km NLOS Hd Wireless Video Sender
20W Rugged COFDM Wireless Transmitter 10-15km NLOS Hd Wireless Video Sender
20W Rugged COFDM Wireless Transmitter 10-15km NLOS Hd Wireless Video Sender
20W Rugged COFDM Wireless Transmitter 10-15km NLOS Hd Wireless Video Sender
Specifications
Brand Name :
Ding Shen
Model Number :
DS-FDD20W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
300*190*170mm
Certification :
CE/FCC
Place of Origin: :
china
Model Number: :
DS-FDD20W
Video port: :
H-D-M-I; SDI; BNC
Frequency: :
300-900Mhz or other frequency customized
video coding: :
H.264
Modulation: :
COFDM
RF power: :
20W
Encryption: :
AES128/256bits
Brand Name: :
Ding Shen
Description

Introduction of long range 100km nlos wireless uav cofdm video transmitter

This military backpack system is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission under the condition of heavy obstacles, such as many building barriers, severe electromagnetic interference, remote mountain town or other harsh environments.

* MPEG-4 /H.264 video compression, full HD video quality
* Low system latency
* Modular design, compact structure, OEM design
* Several wavebands available: VHF/UHF/L/ S
* Built-in very good heat radiation.

Specification:

Power supply
DC input DC12V-DC14V
Working Current ≤4.7A DC12V
Video transmission
Working frequency range VHF, UHF
Modulation COFDM
Constellation QPSK,16QAM
Bandwidth 2/2.5/4/8MHz
Power output 20W
A/V interface BNC, HDM, SDI
Data serial interface RS485/RS232/RS422 (option)
Data working mode Half duplex
Serial data rate 19200bps baud rate maximum
Video input format PAL/NTSC
Video resolution 1080i,1080P,720P
Video encoding MPEG-4/H.264
Audio channel Stereo Left / right channel
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Carrier 2K
Guard Interval 1/32, 1/16, 1/8, 1/4
Antenna interface N type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p 75Ω, NTSC/PAL adaptive
Environment
outer case quality military grade level
Work environment -30~55℃
Storage temperature -40~70℃
Environment humidity ≥95%
Appearance
Weight 4.68kg
Dimension 300*190*170mm
cover range 10-15km NLOS in city; 200-250km from air to ground
Warranty 12 months, lifetime maintenance

Application:

Optional COFDM Wireless Video Audio Receiver:

1). Rack mounted Wireless Receiver:

Specifications:

DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V
Receiving sensitivity ≤-102dBm /4MHz, ≤-95dBm /8MHz
BER BER≤1×10-4
Frequency input range 300MHz~--470MHz
Input interface N(type),Dual antenna diversity reception technology
Modulation COFDM
RF bandwidth 4/8MHz (adjustable)
Constellation QPSK,16QAM,64QAM (optional)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K
Video formats and amplitude PAL/NTSC, 1Vp-p/75Ω
Video compression H.264/MPEG-2(autoadaptation)
Decode code stream rate 0.5-12Mbps
Video output interface Composite video RCA,HDM,ASI,HD-SDI(alternative)
Interrupt recovery Better than 2S
Video channel characteristic Differential gain DG≤1.5%, Differential phase DP≤1°
Audio output Left and right channel and stereo
Dimension 440*340*65mm(1U chassis)
Weight: 3.8kg

2). Portable Receiver with monitor:
