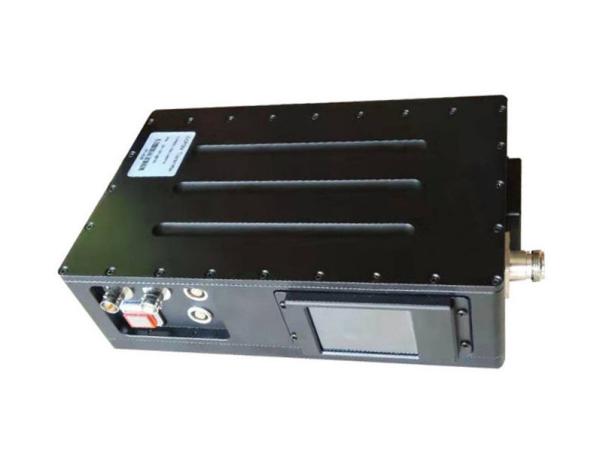

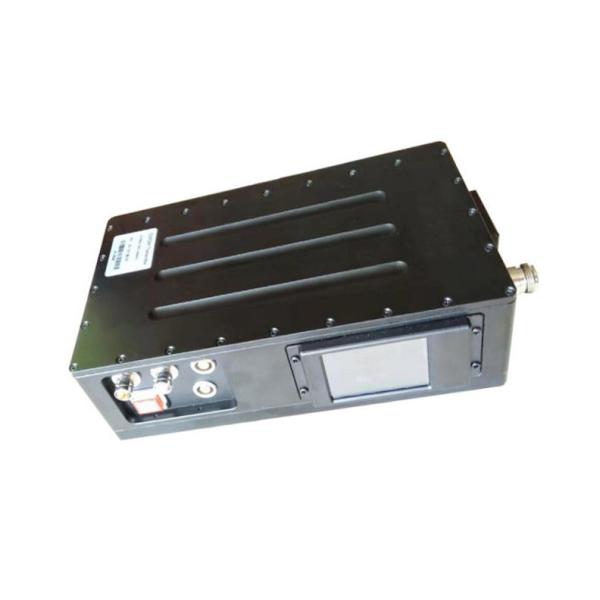

1080P 4MHz 20W COFDM Video Transmitter , Long Range Av Transmitter Receiver
1080P 4MHz 20W COFDM Video Transmitter , Long Range Av Transmitter Receiver
1080P 4MHz 20W COFDM Video Transmitter , Long Range Av Transmitter Receiver
1080P 4MHz 20W COFDM Video Transmitter , Long Range Av Transmitter Receiver
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Certification :
CE/FCC
Place of Origin: :
china
Model Numbe :
DS-HDT20W
Modulate :
COFDM
Frequency: :
300-900Mhz or other frequency customized
Video input: :
HDMI/SDI; CVBS
Video resolution: :
1920*1080P/I@60fps; 1280*720P/I@60fps
Description

300Mhz-400Mhz Frequency Low Price Wireless Mini Camara Remote Control Car Diagnostic Monitoring Outdoor Video Transmitter

FPV audio video transmitter long range wireless HD video UAV Transmitter is one set NLOS

or LOS long range 1080P or 1080i HD HDMI or sdi COFDM video wireless transmitter and receiver.HD video UAV Transmitter SG-HD25 transmits data,including audio, video or images

over a NLOS long range.

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 300-900Mhz or other frequency customized
Output power 10-20W adjustable
Video input HDMI/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 220*140*66mm
Weight 2.5kg

Receiver parameter:

Frequency 300-900MHz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-2/H.265
Screen 4:3 16:9
Video resolution 1080P@4MHz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 480*260*45(1U chassis)
Weight 1.5kg

Features/Functions

1. Latest COFDM modulation,
2. H.264/MPEG self-adapted video compression,
3. AES128/256bits user-defined password,
4. High-performance li-battery, 3 hours of continuous work,
5. Adjustable frequency, RF bandwidth, RF power on LCD configured panel,
