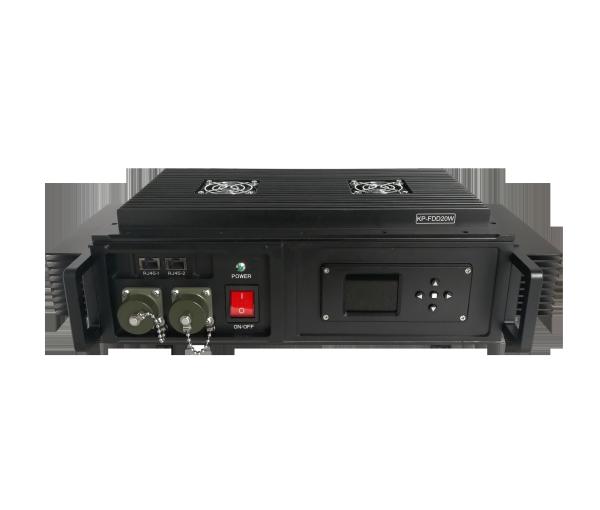

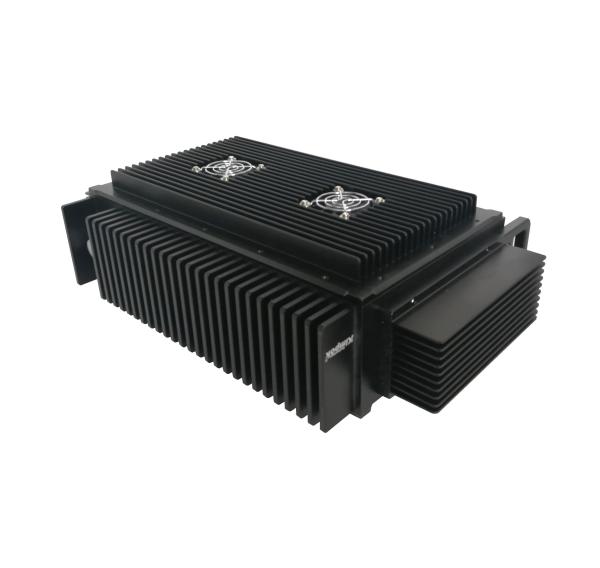

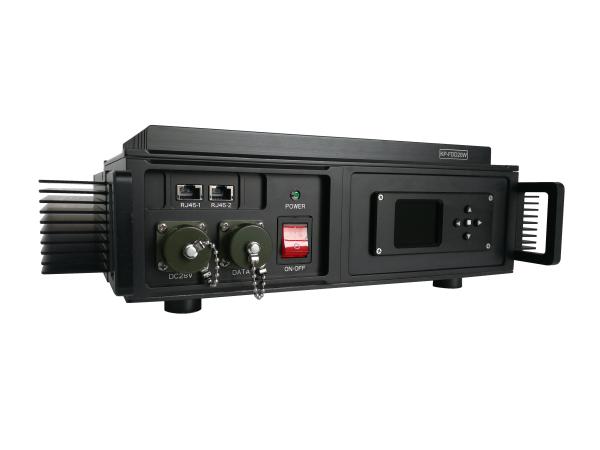

COFDM 2K QPSK Wireless Hdmi Transmitter Long Range Moving Video Signal Transmission
COFDM 2K QPSK Wireless Hdmi Transmitter Long Range Moving Video Signal Transmission
COFDM 2K QPSK Wireless Hdmi Transmitter Long Range Moving Video Signal Transmission
COFDM 2K QPSK Wireless Hdmi Transmitter Long Range Moving Video Signal Transmission
COFDM 2K QPSK Wireless Hdmi Transmitter Long Range Moving Video Signal Transmission
COFDM 2K QPSK Wireless Hdmi Transmitter Long Range Moving Video Signal Transmission
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT25W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 working days
Certification :
CE/FCC
Place of Origin: :
china
Certification: :
EC/FCC/ROHS
Model Number: :
DS-HDT25W
Frequency:: :
300-900MHz,1.2G/2.4G/5.8GHz
Description

Long Range Vehicle / Marine COFDM HD Video Transmitter 15~20km NLOS Wireless Security System

High Power COFDM Video Transmitter Introduction:

DS-HDT25W It’s a new powerful HD COFDM video audio transmitter, up to 25W power which support transmitting over a long distance.Using the core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS). Suitable for vehicles - cars, boat - boats, cars - a building, ship – a base station, aircraft –a buiding/vehicle and etc. high-definition moving video signal transmission, the carrier velocity greater than 450 km / h.Widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs, oil, mining, water, electricity, geology, finance and other relevant state departments.

Features

COFDM modulation,FDD (Frequency-division duplexing)technology
Narrowband but great data send from end to end.
Great transfer rate for uplink and downlink
Point to point mobile wireless communication
Transparent IP Ethernet and serial data sync telecommunication
MIMO aerial working mode
Dynamic AES encryption 128bits
Narrowband 1M/2M/4M/8MHz available
Work well in NLOS fast moving condition
Small in size,lightweight and low consumption
Simple operation,easy deployment

Specification:

Frequency 300-900MHz,1.2G/2.4G/5.8GHz
RF power 15-25Watt(adjustable)
Power supply DC11-14.5V/1.9A
Modulation COFDM 2K QPSK
RF Bandwidth 4/8MHz(adjustable)
Delay time Only 150ms
FEC 1/2 2/3 3/4 7/8
Guard Interval 1/32 1/16 1/8 1/4
Data Encryption AES 128/256 Bits
Max speed 450km/h
Video Input BNC: D1 standard definition
HD: HD1080I/1080P, 720P, 576, 480
SDI:HD1080I/1080P, 720P, 576, 480
Video compression format H.264
Video Resolution 180p/1080i@60fps, 1920*1080 definition
RF Interface N
Work environment -40℃~70℃
Video Format PAL/NTSC(self-adaption)
Transmission Distance

15km NLOS distance(ground to ground)

20km-35km LOS distance(on sea)
Case Material Aluminum (black)
Size 220*275*78mm
Weight 5.1kg
