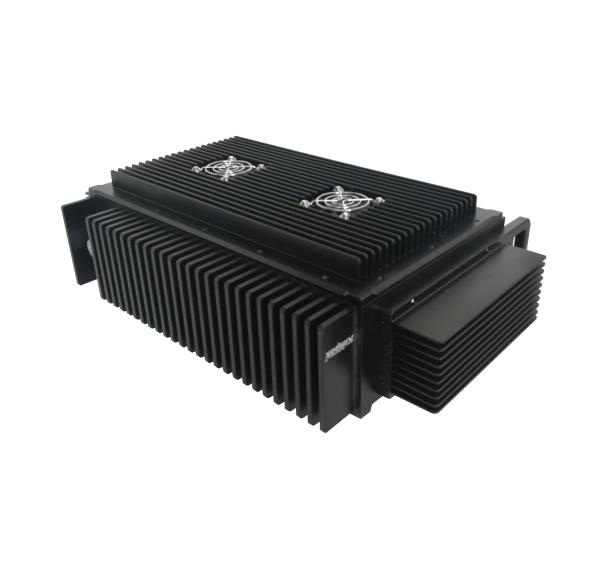

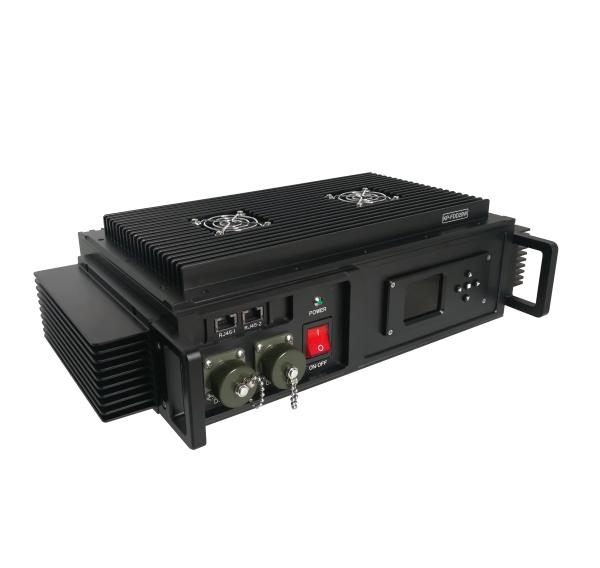

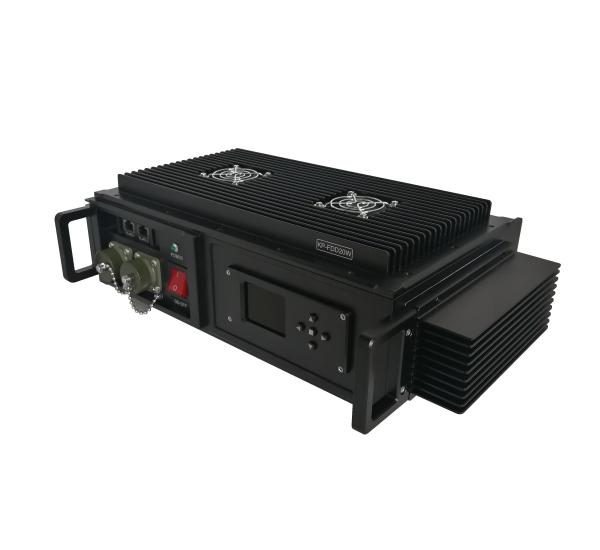

Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System
Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System
Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System
Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System
Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System
Vehicle / Marine COFDM HD Video Transmitter 15km~20km NLOS Wireless Security System
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT25W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T, T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 working days
Certification :
CE/FCC
Place of Origin: :
china
Certification: :
EC/FCC/ROHS
Model Number: :
DS-HDT25W
Frequency:: :
300-900MHz,1.2G/2.4G/5.8GHz
Weight: :
5.1KG
Description

30W Rack-mount Tactical Ethernet military MIMO Radio

FDD is a new type of full duplx communication technology used in mobile communication systems,uses two separate channels for uplink and downlink transmission. model is a high power COFDM modulation Network IP radios with 30W rf power output.As its lightweight and small size that meets various vehicle /Vessel purpose required for robust long range video and data control over IP camcorder or Computer connection.
30W Rack-mount Tactical Ethernet military MIMO Radio design conforms to the military vehicle and is suitable for point-to-point long-distance mobile transmission.So the product is suitable for military, large unmanned aerial vehicles, UGV and other fields requiring long-distance network mobile communication.

Specification:

Frequency 300-900MHz,1.2G/2.4G/5.8GHz
RF power 15-25Watt(adjustable)
Power supply DC11-14.5V/1.9A
Modulation COFDM 2K QPSK
RF Bandwidth 4/8MHz(adjustable)
Delay time Only 150ms
FEC 1/2 2/3 3/4 7/8
Guard Interval 1/32 1/16 1/8 1/4
Data Encryption AES 128/256 Bits
Max speed 450km/h
Video Input BNC: D1 standard definition
HD: HD1080I/1080P, 720P, 576, 480
SDI:HD1080I/1080P, 720P, 576, 480
Video compression format H.264
Video Resolution 180p/1080i@60fps, 1920*1080 definition
RF Interface N
Work environment -40℃~70℃
Video Format PAL/NTSC(self-adaption)
Transmission Distance

15km NLOS distance(ground to ground)

20km-35km LOS distance(on sea)
Case Material Aluminum (black)
Size 220*275*78mm
Weight 5.1kg
