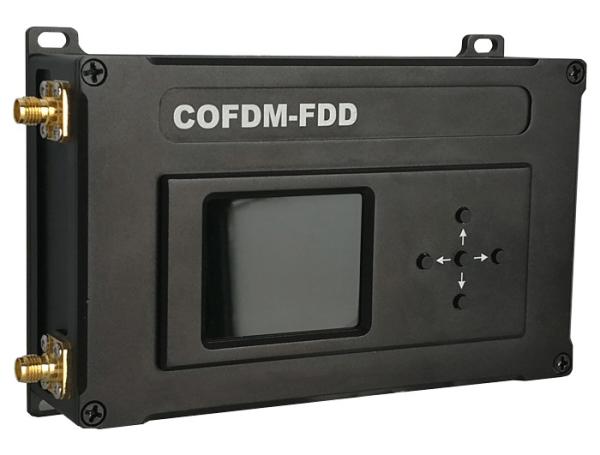

Small Wireless Ethernet Radio Transmitter COFDM Modulation 2W RF Power For UAV
Small Wireless Ethernet Radio Transmitter COFDM Modulation 2W RF Power For UAV
Small Wireless Ethernet Radio Transmitter COFDM Modulation 2W RF Power For UAV
Small Wireless Ethernet Radio Transmitter COFDM Modulation 2W RF Power For UAV
Small Wireless Ethernet Radio Transmitter COFDM Modulation 2W RF Power For UAV
Small Wireless Ethernet Radio Transmitter COFDM Modulation 2W RF Power For UAV
Specifications
Brand Name :
Ding Shen
Model Number :
DS-FDD2W
Place of Origin :
china
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
131x92x39mm
Power Supply: :
DC12V/1.5A
Frequency: :
555MHz (can Be Customized 300-3300MHz)
Video Compression: :
H264
Modulation: :
COFDM
Certification :
CE/FCC
Description

Uplink and downlink COFDM Video Transmitter with 2W RF Power Ethernet Radios 30-50km on UAV

COFDM Video Transmitter Description:
KP-FDD2W is a lightweight COFDM modulation Network IP radios with 2W RF power output.
FDD is a new type of full duplx communication technology used in mobile communication systems, uses two separate channels for uplink and downlink transmission. As its lightweight and small size that meets various drones and robotic required for robust long range video and data control over IP camcorder or Computer connection.
Feature:

  • Great transfer rate for uplink and downlink
  • COFDM modulation, FDD technology
  • Transparent IP Ethernet and serial data sync telecommunication
  • Dual frequency is ideal for IP solution need long-distance communication
  • Dynamic AES encryption 128bits
  • RF Narrowband 1/2/4/8MHz available
  • Work well in NLOS fast moving condition
  • Integrated design, super linear
  • Small in size, lightweight and low consumption
  • Easy deployment, Simple operation


Specifications:

Power supply DC12V/1.5A
TX output frequency 555MHz (can be customized 300-3300MHz),step in 1MHz
RX output frequency 595MHz (can be customized 300-3300MHz),step in 1MHz
RF bandwidth 1/2/4/8MHz
RF power output 33dBm / 2W
Encryption/decryption mode AES128 bits(user-defined password)
Modulation COFDM 2K
Transfer rate 2x30 Mbit/s uplink and downlink
RF connector SMA type *2

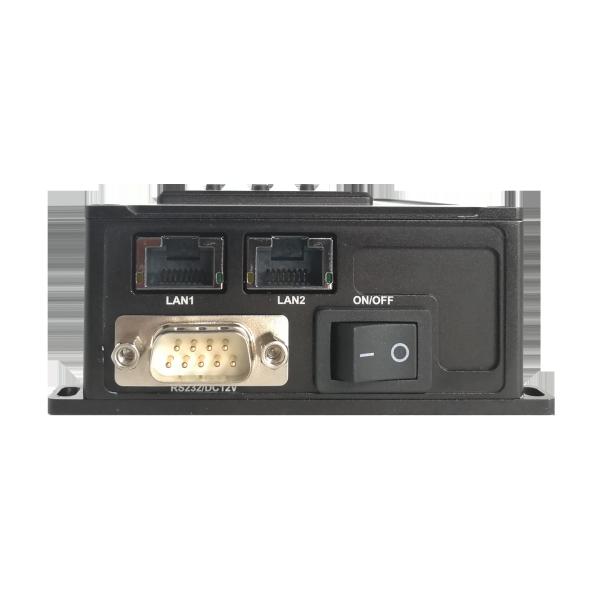

Ethernet Standard RJ45 port *2
Serial port RS232 serial port
Baud rate 115200bps maximum
Two way audio Aviation plug
LCD panel with keypad Easy to set the related parameters
Dimension 131x92x39mm
Weight 527g
Transmit distance up to 50km from Drones to ground station
2km NLOS for ground level communication
