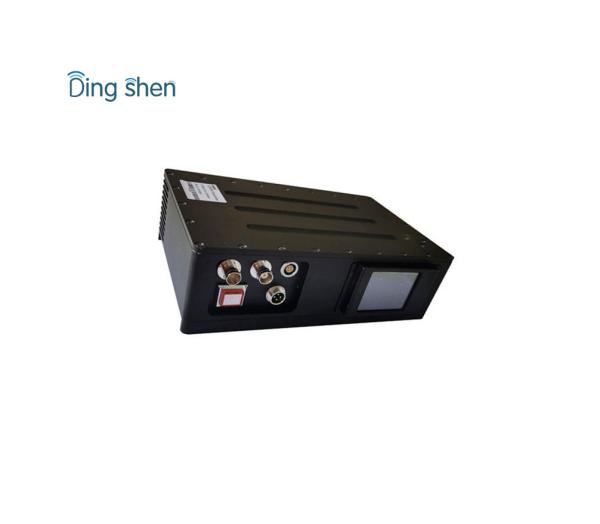

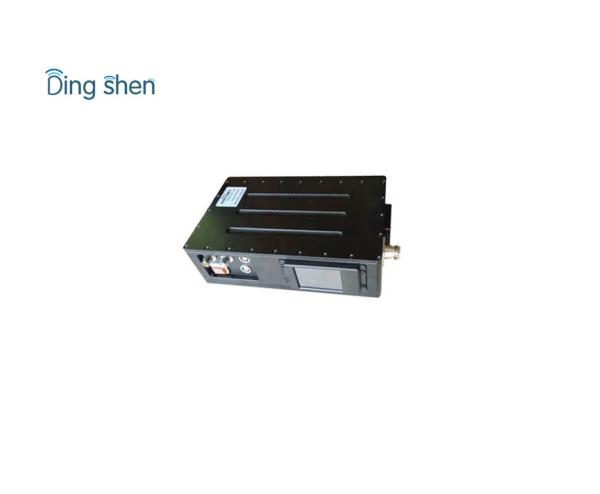

5 Watt UAV Video Link Long Range Wireless Communication 130*100*43mm
5 Watt UAV Video Link Long Range Wireless Communication 130*100*43mm
5 Watt UAV Video Link Long Range Wireless Communication 130*100*43mm
5 Watt UAV Video Link Long Range Wireless Communication 130*100*43mm
5 Watt UAV Video Link Long Range Wireless Communication 130*100*43mm
5 Watt UAV Video Link Long Range Wireless Communication 130*100*43mm
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 working days
Certification :
CE/FCC
Size: :
130*100*43mm
RF Output Power: :
5 Watt
Voltage: :
DC12V
Video Compression: :
H.265
Encryption: :
AES128/256bits
Weight: :
600g
Description

Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range

Description:

DS-HD5000LW is a video transmitter specially developed for long-distance UAV image transmission, which can transmit images in real time and stably under high-speed movement.
It has ultra-low delay and ultra-light volume, which can realize the air-to-ground transmission distance of 100km.
It is also suitable for image transmission with the ground, and can be used in the fields of public security investigation, military operations, fire special robots, etc.

Features

1. H.264/MPEG-4/MPEG-2 video compression

2.Standard definition 720P compatible

3. Working well in Non-line of sight (NLOS) high-speed mobile transmission

4. Support receiving video audio and data control multi signals at the same time.

5. Digital display panel operation and simple operation

6.Standard 1.5U chassis, easy to place in vehicle/room.

7. AAluminium alloy material design, dust-proof , dampproof,shockproof and shock resistance

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 5 watt
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.265
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km from UAV to ground station; 1-3km NLOS from ground to ground
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 130*100*43mm
Weight 600g
Box colour Black
Antenna port N type
