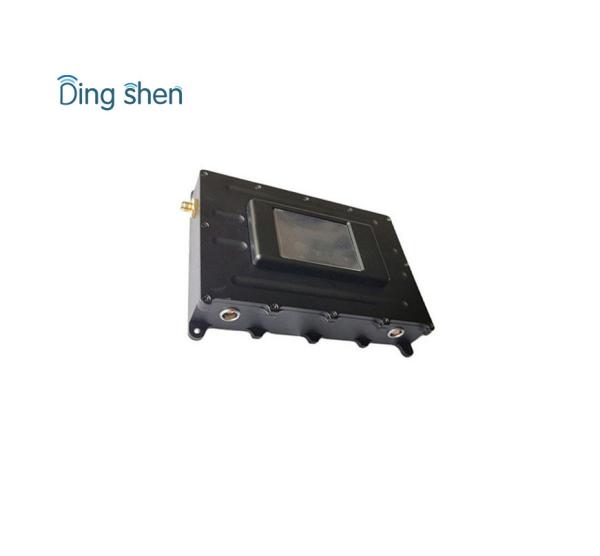

20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable
20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable
20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable
20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable
20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable
20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT3W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
132*90*26mm
Certification :
CE/FCC
Resolution: :
1980*1080P
RF Output Power: :
2 Watt
Video Compression: :
H265
Size: :
132*90*26mm
Product name: :
2 watt UAV video transmitter DS-HDT103
SHG: :
>52dBc
Antenna port :
N type
Description

Safe Guard Handheld Low-Frequency COFDM Secure Digital Video Transmitter

ultra-low latency H.264 COFDM HD portable wireless video transmitter, adopted the 4th generation multi-carrier modulation technology and highly efficient/ innovative H.264 compression coding. Greatly improve coding efficiency,decrease coding delay, optimize algorithm, anti-bit error rate and improve image quality, which use the lowest bit rate to achieve the best image compression.

.

Features

● Support COFDM model H.264/MPEG2 full-featured video decoding

● Support NLOS,High-speed movement transmission

● Digital operation panel and display,easy to use

● Support dual antenna multi-carrier diversity reception

atu

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 2 watt
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.265
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL

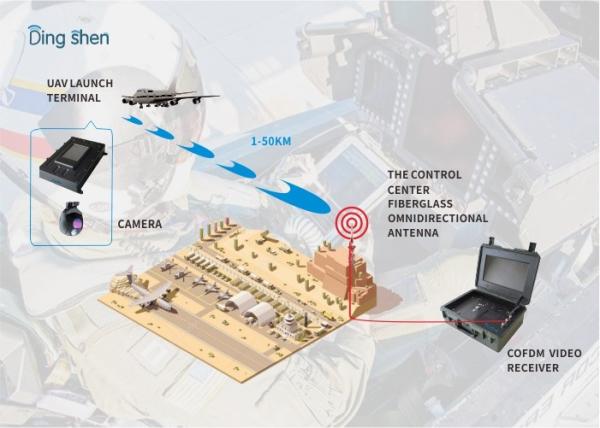

Transmission distance 20km from UAV to ground station; 1-4km from ground to ground
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 132*90*26mm
Weight 420g
Box colour Black
Antenna port N type

Specifications:

  1. Frequency/Video: 300-450MHz(adjustable), 450-800MHz(adjustable)
  2. Frequency/Data: 200-270MHz(adjustable)
  3. Receive sensitivity: -105dBm
  4. RF Interface: N
  5. Power supply: DC12-14V
  6. Modulation: COFDM, 2K
  7. AV Interface: BNC
  8. FEC: 1 / 2
  9. Guard Interval: 1 / 32
  10. Video Output: 1 line PAL / NTSC analog video
  11. Revolution: 720*576
  12. Lines of horizontal: 625 or 525 Line
  13. Audio Output: Analog stereo left and right channels
  14. Data Encryption: AES 256 Bits
  15. Data port: RS232 @1200-9600pbs(adjustable)
  16. Work environment: -30~70
  17. Weight: 3.5KG
  18. Size: 430*310*65mm

20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable20km Drone Video Link Hd Sdi Wireless Transmitter 2W-5W Rf Power Adjustable

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
