Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT2W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
167*90*25mm
Certification :
CE/FCC
Model Number: :
DS-HDT2W
DC Input: :
DC11V~DC16V
Modulation: :
COFDM
Power output: :
1-2W(adjustable),in 1dB step
Encryption: :
AES128/256bits
FEC: :
1/2 2/3 3/4 5/6 7/8
Description

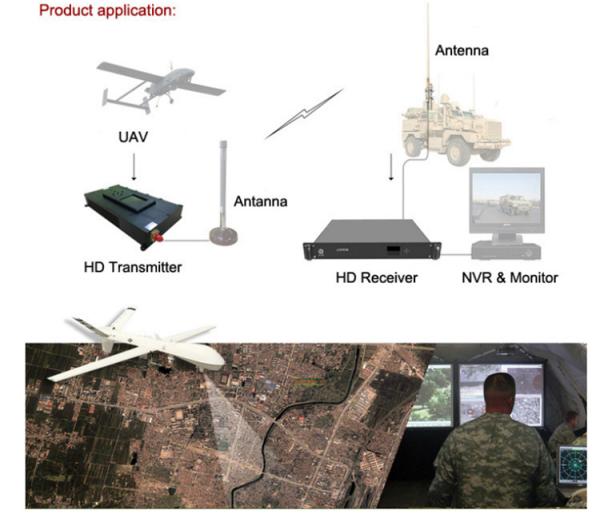

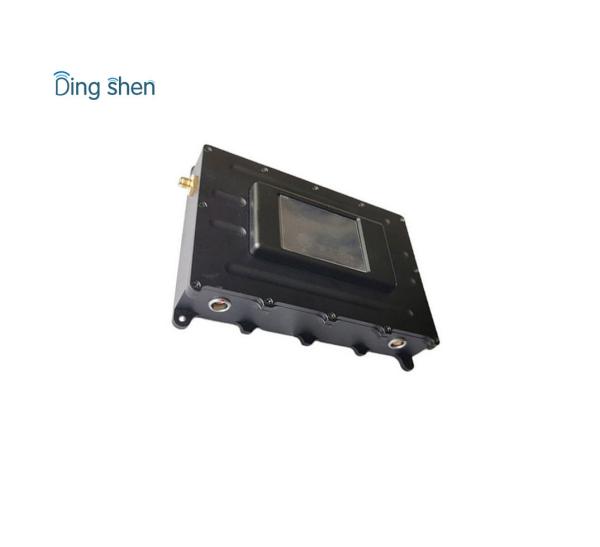

HD video transmitter 1km- 5km wireless long range COFDM AV sender

Designed for both HD and SD cameras, transmitter is an innovative product of wireless HD links for advanced and professional for electronic news gathering, television outside broadcasts and studio applications.

HD transmitter adopts the latest COFDM modulation technology and H.264 encoding that complete video audio transmission in high-speed motion and NLOS(non line of sight) conditions with low delay.

What's more, the diversity receiving technology greatly improves the receive quality in all working conditions, high definition picture quality and capability.

Features:


1. Low delay, lightweight, live broadcast;
2. Support Full- HD quality image;
3. Support 1080i/1080P HD transmission;
4. COFDM modulation;
5. Built-in with HDM-I or HD-SDI interface(single selection);
6. Support composite standard video and balanced audio input;
7. All parameters can be adjusted by user;

Transmitter parameter:

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A DC12.5V

Transmitter section
Frequency range Output 250MHz-4400MHz, can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-2W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDM-I(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
HDCP protocol Yes

Encoding support
AV rate 64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance 20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics
Dimension 167*90*25mm
Weight 515g
