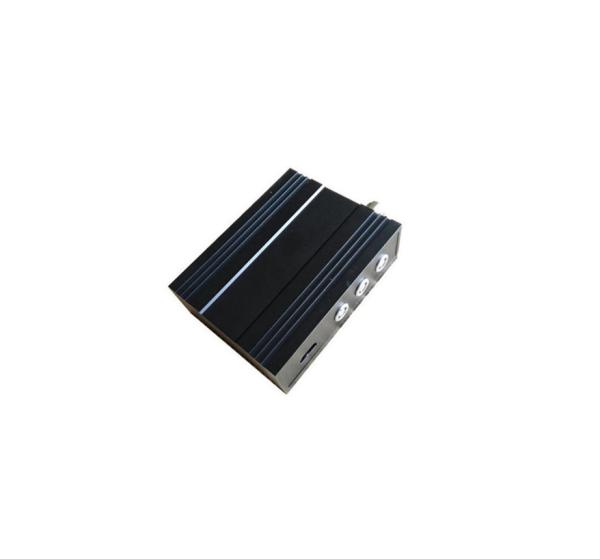

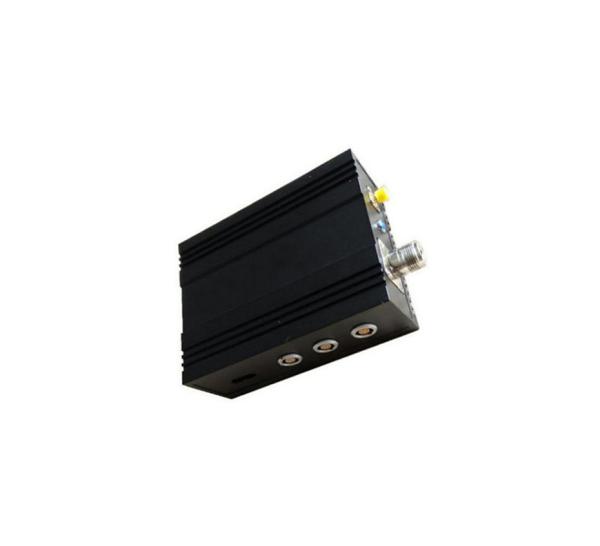

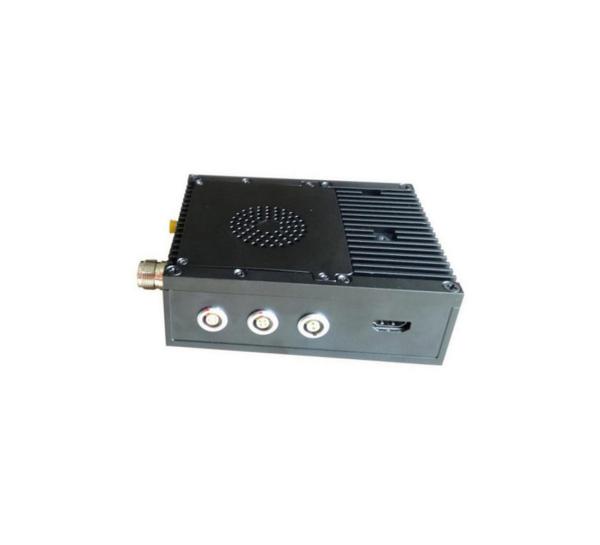

DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
DC12V Uav Radio Link , Cofdm Digital Video Transmitter 2W-5W rf power adjustable
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT5000
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
220*150*60mm
Certification :
CE/FCC
Resolution: :
1980*1080P
RF Output Power: :
5 Watt
Voltage: :
DC12V
Compression: :
H264
Encryption: :
AES128/256bits
Place of Origin: :
Guangdong,china
Consumption: :
<40W
Description

Introduction of Long range wireless video transmitter 100km 800mhz

Long range wireless video transmitter 100km 800mhz for surveillance camera is a powerful HD transmit system. using the core of mobile communication technology COFDM(multi-carrier modulation technique), which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P(1080i) H.264 encoding format and HD-MI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

.

Features:

● 2-5W rf power adjustable

● Low delay time

● With four holes at the bottom of the transmitter for fixed installation

● COFDM modulation technology ensure the stability of signal

● Support FULL HD quality,1080i/P@30fps;

● Built-in with HD and BNC ports;

● Provide AES128 encryption for video safety.

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 37dbm (5W)
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 80-100km LOS from air to ground; 1-3km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type
