Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Certification :
CE/FCC
Modulation: :
COFDM
Frequency: :
300-900MHz (optional)
Video Decoding: :
H.264/H.265
Bandwidth: :
2/2.5/4/8MHz (adustable)
Video Port: :
HDMI
Weight: :
900g
Description

Radio Frequency Intercom System 5.8ghz Video Drones with Long Flight Time Point to Point 1080p Video Transmitter

Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.

Features:

* COFDM modulation

* inbuilt with HDMI and data serial port

* Heat dissipation with aluminum case;

* Great security by AES user defined encryption

* Ideal for UAV/UGV and hidden mission use

Description:

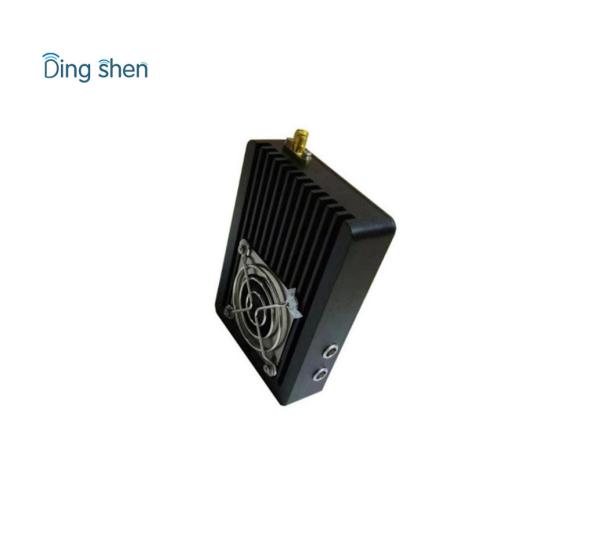

DS-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.

.

Transmitter Specification:

Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;
Data serial port RS485RS232/TTL ,one-way communication
Frequency 300-1500MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1Watt(30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃～75℃
Dimension 100*60*16mm
Weight 133g(without battery)

Rugged Mini Cofdm Transmitter , Drone Fpv Transmitter And Receiver 900gRugged Mini Cofdm Transmitter , Drone Fpv Transmitter And Receiver 900gRugged Mini Cofdm Transmitter , Drone Fpv Transmitter And Receiver 900g

Receiver specificatations:

Frequency 300-900MHz(option)
Bandwidth 2/2.5/4/8MHz (adustable)
RF Level Input -92dBm~-20dBm / -105dBm~-20dBm
RF Impedance 50Ω
RF Interface N female
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K,8K
Video Decoding ISO/IEC13818-2 MPEG-2MP@ML
Aspect Ratio 4:3, 16:9
Resolution 1080P; 720P
Audio Output Analog stereo left and right channels
Lines of horizontal 625 or 525 Line
Decryption AES256 bit / ALLTECH Basic scrambling
Working Voltage AC220V / DC12V
Temperature -30~70°
Dimension 430*310*65mm (1U Aluminium alloy box)
Weight 1.5 kg
