Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
>=1 Sets $3700
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-10 working days
Packaging Details :
100*60*16mm
Certification :
CE/FCC
Certification: :
EC/FCC/ROHS
Model Number: :
DS-HDT1W
Modulation: :
COFDM
Video Decoding: :
H.264/H.265
Video Port: :
HDMI
Weight: :
900g
Description

Army High Power Remote Terminal COFDM Microwave SDI Video Transmitter

Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

It's widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.

Features of best choice light weight hd transmitter sky to ground



* NTSC/PAL automatically adapt , support user adjustable;
* Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;
* Lithium battery for power supply (continuous working time is 1 hour max)
* Adjustable working frequency, bandwidth, RF power and etc.
* Transmission security by encryption of AES 128/265 bits
*.

Description:

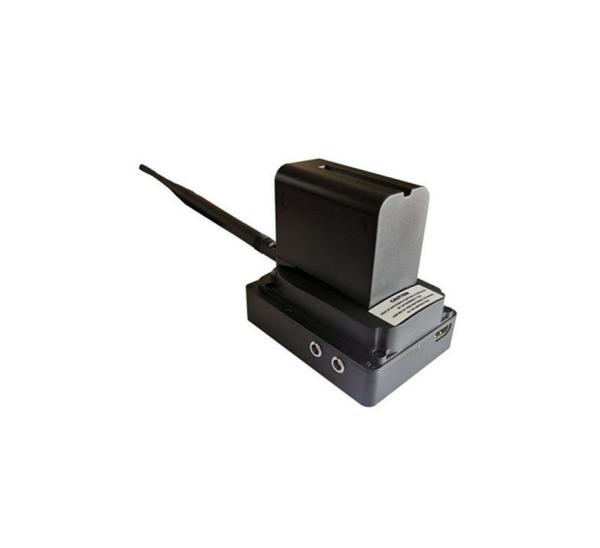

DS-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.

The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular,COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.

Transmitter Specification:

Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;
Data serial port RS485RS232/TTL ,one-way communication
Frequency 300-1500MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1Watt(30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃～75℃
Dimension 100*60*16mm
Weight 133g(without battery)
