60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT5000
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
220*150*60mm
Certification :
CE/FCC
Consumption :
<40W
Encryption :
AES 128 bits
Constellation :
QPSK(4QAM),16QAM,64QAM
FEC :
1/2 2/3 3/4 5/6 7/8
Carrier :
2K,8K
Bandwidth :
2/3/4/6/7/8MHz (option)
Description

.

Military Video Radio Communication Wireless Repeater

The new 1080P HD wireless audio video data signal repeater meets military requirement. COFDM wireless repeater is with 340-700MHz available frequency and super strong capacity of diffraction and penetration.

COFDM wireless repeater perforems well in NLOS video signal wireless communication in cave,basement such harsh environment with heavy barriers urban environment.

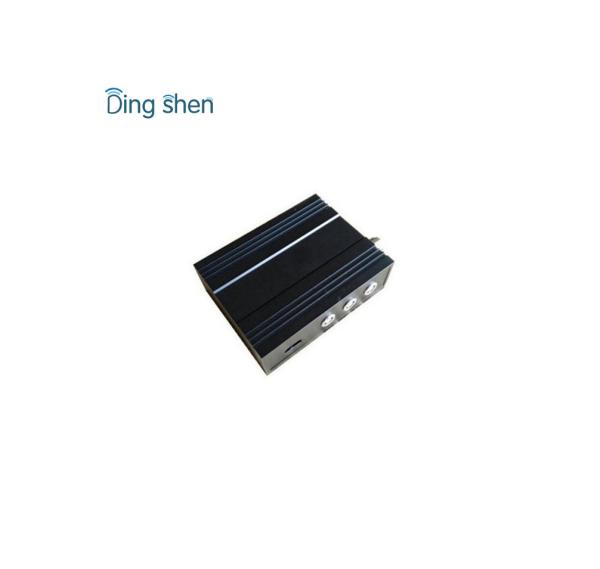

The Transmitter is a new arrival digital wireless video audio transmitter with high power rf output which adopts the latest technologiesof COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video.

The transmitter is compact size with strong power amplifier for long range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. Which make sure working well in fast-moving and NLOS video-link transfer.

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 37dbm (5W)
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.264/H.265
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 80-100km LOS from air to ground; 1-3km NLOS on ground station; 10km LOS in city.
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type

60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting60KM-100KM UAV Video Transmitter And Receiver For Drone And Helicopter Shooting
