OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Packaging Details :
220*140*80mm
Certification :
CE/FCC
Place of Origin: :
china
Certification: :
CE
Model Number: :
DS-HDT20W
Modulation :
COFDM 2K QPSK
Frequency :
300-900Mhz or other frequency customized
Video input :
HDMI/SDI; CVBS
Description

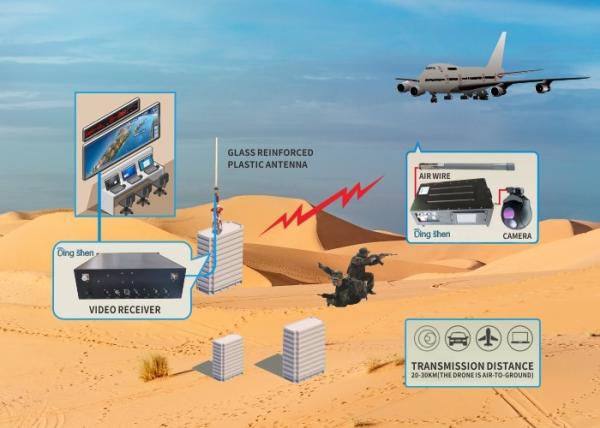

Customized long range COFDM video transmitter for camera surveillance

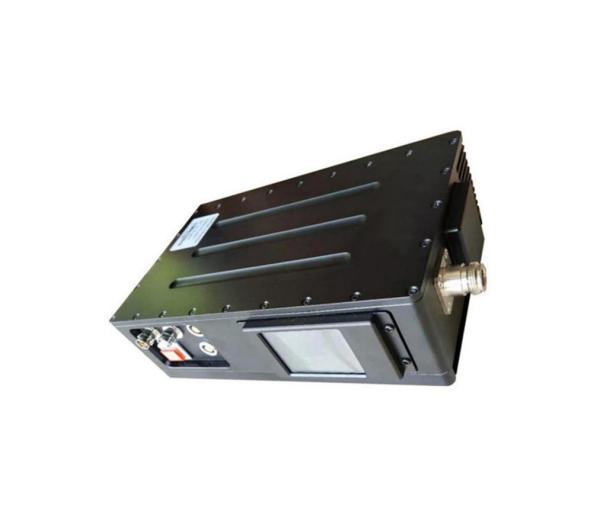

It’s a new powerful HD COFDM video transmitter, can up to 15-25W RF power which supports transmitting over a long distance. With the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non-line-of -sight) transmission with DVD quality video. The transmitter is compact size with a strong power amplifier for long range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. Can work well in fast-moving transmission.

Introduction:


This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with three cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission and obstruction environment.

Specifications:

Modulation CODFM
DC input DC12V-DC14V
Working Current ≤4.7A@DC12V
Constellation QPSK,16QAM,64QAM (optional)
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Carrier 2K
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Frequency 138-4400MHz (available)
RF power output 10-20W
A/V interface RCA
RF interface N type
Flatness ≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
Video Harmonic 1Vp-p @ 75Ω, NTSC/PAL adaptive
CBER <2.0E-4
Video Compression H.265/H.264/MPEG-4
Resolution 1080P/720P
Video Rate 6Mbps
Work environment -30~70°
Dimension 220*140*80MM
Weight 2.3kg

Receiver parameters:

OEM HD COFDM Video Transmitter Vehicle Mounted With 20W Output Power

Product Features:

  1. HD 1080P receiver;
  2. Supported multi-socket output;
  3. Transmit video and audio signal simultaneously.
  4. Can be with RS485/RS232 data control together.
  5. Rack design,easy to installed in Car

Specifications:

DC Input DC11V~DC16V
Working Current ≤1.1A@DC12.5V
Receiving sensitivity ≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz
BER BER≤1×10-4
Frequency input range 300MHz~--470MHz
Input interface N(type),Dual antenna diversity reception technology
Modulation COFDM
RF bandwidth 4/8MHz (adjustable)
Constellation QPSK,16QAM,64QAM (optional)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K
Video formats and amplitude PAL/NTSC, 1Vp-p/75Ω
Video compression H.265/H.264/MPEG-4(autoadaptation)
Decode code stream rate 0.5-12Mbps
Video output interface Composite video RCA,HD,ASI,HD-SDI(alternative)
Interrupt recovery Better than 2S
Video channel characteristic Differential gain DG≤1.5%, Differential phase DP≤1°
Audio output Left and right channel and stereo
Dimension 440*340*65mm(1U chassis)
Weight: 3.8kg
