UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
UAV Long Distance Sdi Wifi Transmitter , Live Video Transmitter And Receiver
Specifications
Brand Name :
Ding Shen
Model Number :
300-900Mhz or other frequency customized
Place of Origin :
shen zhen china
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Packaging Details :
220*150*60mm
Certification :
CE/FCC
Consumption: :
<40W
Constellation: :
QPSK(4QAM),16QAM,64QAM
Guard Interval: :
1/32 1/16 1/8 1/4
Description

Multi-Channel High Quality 4-5KM VHF/UHF FM Real Time Broadcasting Equipment FPV Wireless Video Transmitter for Communication SG-T5000S


This is an exclusive design COFDM transmitter and receiver. Has a character of low power,small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture, short latency.

This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 2~5W adjustable
Video input HDMI,CVBS,AHD,SDI (option)
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

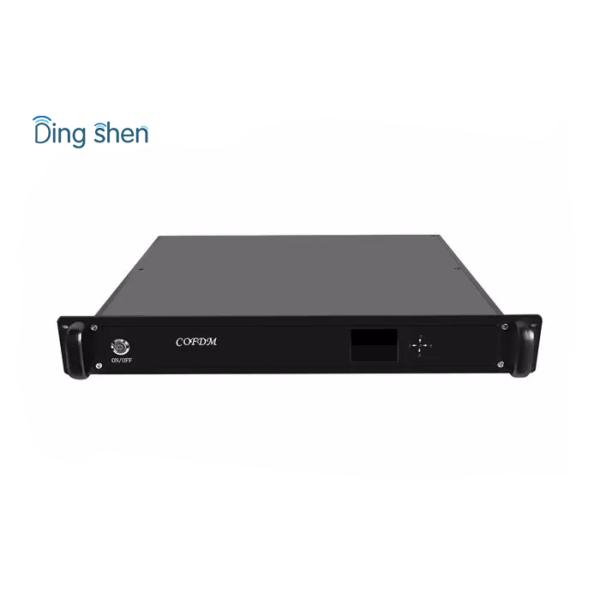

Receiver parameter:

Frequency 300-900Mhz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
Working Temperature -20℃~+50℃
Dimension 483*300*44mm
Weight

1.5k
