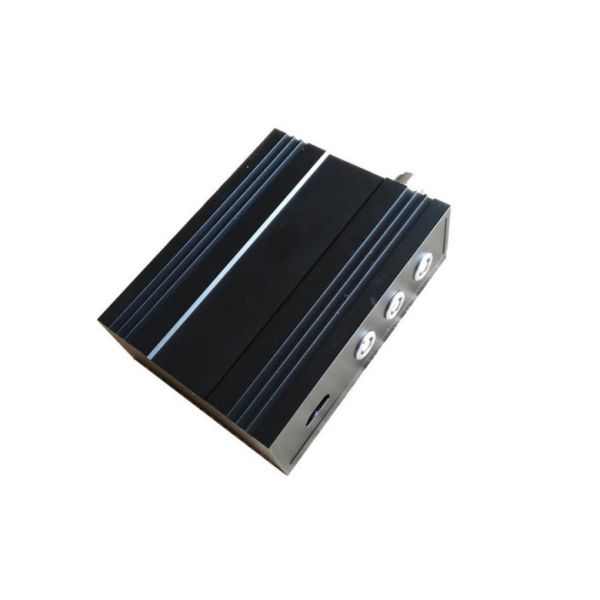

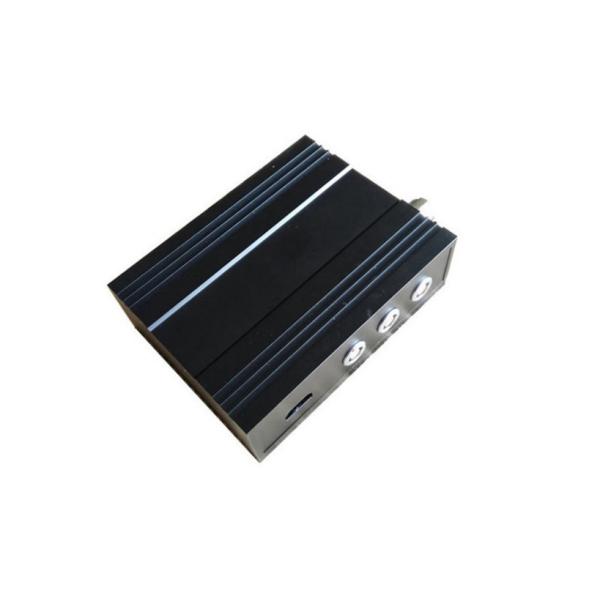

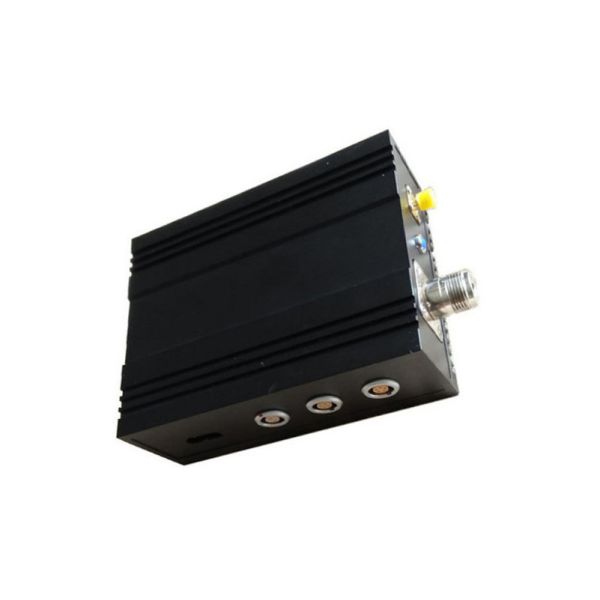

HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
HDMI SDI Analog Wireless Transmitter Multi Bandwidth Modulation For UAV
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT5000
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Certification :
CE/FCC
Modulation :
COFDM
Frequency :
300-900Mhz or other frequency customized
Consumption: :
<40W
Video input :
HDMI/SDI; CVBS
Constellation: :
QPSK(4QAM),16QAM,64QAM
Brand Name: :
Ding Shen
Product name: :
HD Cofdm analog wireless audio video transmitter and receiver
Description

COFDM Military Wireless Transmitter Board Manpack Radio is a new COFDM modulation digital transmitter receiver integrated with using COFDM technology, designed with dual-mode Rf transmitter architecture and system which operate at different carrier frequencies. COFDM Military Wireless Transmitter Board Manpack Radio is compact size with strong power amplifier for longrange transmission. Good heat resistant with two cooling fans. Be safety with AES128/256bits.

Implement of super narrowband (1MHz), low-latency and high-sensitivity capacity that is ideal for long-distance transmission and non-line-of-sight (NLOS) applications. With highly integrated embedded design, super-linear digital predistortion RF design and network, modulation and demodulation, full-band RF output All-in-one which help you complete the design of long-distance wireless links more conveniently and quickly. It is mainly used for multi-channel video transmission .

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 2~5W adjustable
Video input HDMI,CVBS,AHD,SDI (option)
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Receiver parameter:

Frequency 300-900Mhz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
Working Temperature -20℃~+50℃
Dimension 483*300*44mm
Weight 1.5kg
