Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT5000
Place of Origin :
China
MOQ :
1set
Price :
>=1 Sets $4900
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
5-10 working days
Certification :
CE/FCC
Modulation :
COFDM 2K QPSK
Frequency :
250MHz~1.4GHz
Output power :
1-3W(adjustable),in 1dB step
Encryption :
AES 128 bits
Constellation: :
QPSK(4QAM),16QAM,64QAM
SHG: :
>52dBc
Description

COFDM HD 1080p/i Video Link Shortwave Transmitter

Summarize

COFDM HD 1080p/i Video Link Shortwave Transmitter, a new HD interface SDI COFDM HD 1080p/i Video Link Shortwave Transmitter, is to send FHD video.

COFDM HD 1080p/i Video Link Shortwave Transmitter can connect to interface hd-sdi CCTV camera to transmit receive FHD 1080P, 1080I video.

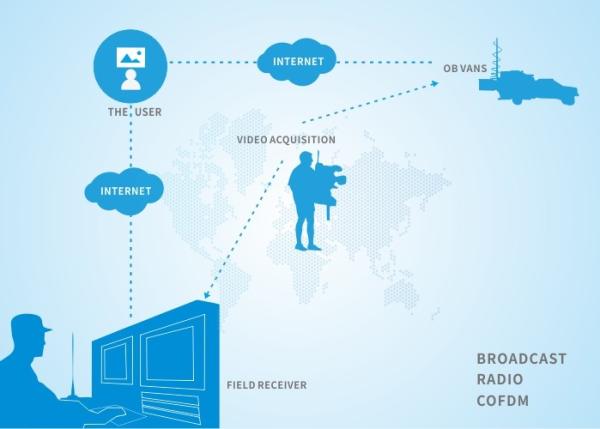

COFDM HD 1080p/i Video Link Shortwave Transmitter is popular among military, inspectation section, police, army, fireman to install in station, building or helicopter, UAV ( unmanned aerial vehicle ) to live broadcast data (audio, video, images)

COFDM HD 1080p/i Video Link Shortwave Transmitter

Advantages

  1. High quality image and high definition video transmission
  2. High speed mobile transmission, max speed 450km/h;
  3. Adjustable RF power( 2-8W ), up to 50km NLOS distance
  4. Broad-spectrum: in UAV shooting,Live broadcasting...

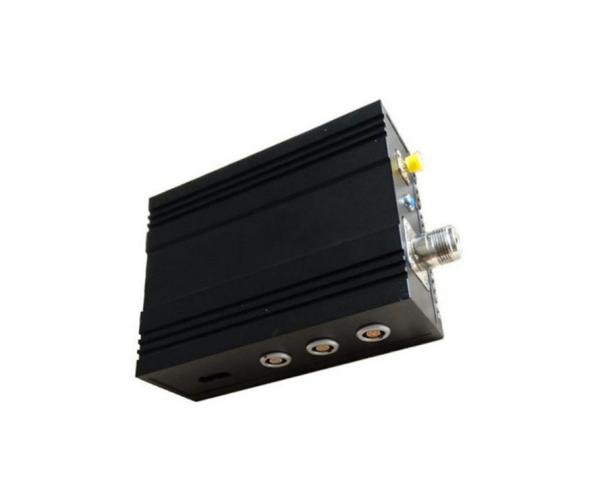

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 2~5W adjustable
Video input HDMI,CVBS,AHD,SDI (option)
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type

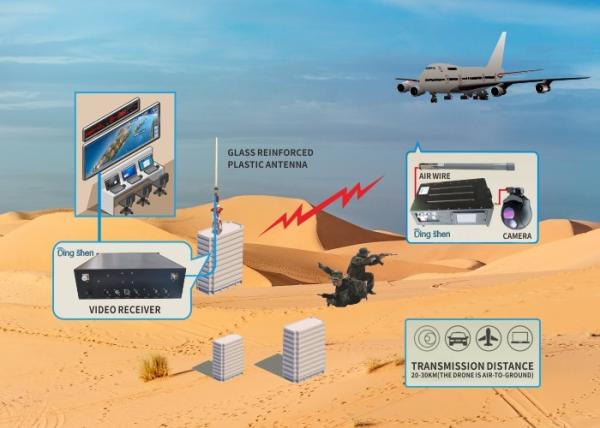

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Receiver parameter:

Frequency 300-900Mhz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
Working Temperature -20℃~+50℃
Dimension 483*300*44mm
Weight 1.5kg
