Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
Specifications
Brand Name :
Ding Shen
Model Number :
DS-FDD100W
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
Export Standard Packing
FDD-COFDM 2K: :
FDD-COFDM
Encryption: :
AES 128 Bit
RF Frequency: :
555MHz (can Be Customized 300-3300MHz)
RF Power: :
50dBm (100W)
Serial Port: :
RS232/RS485 Serial Port
Certification :
CE/FCC
Description

Tactical Ethernet Wireless Video Transmitter 50km Military Radio Communication System

Description:

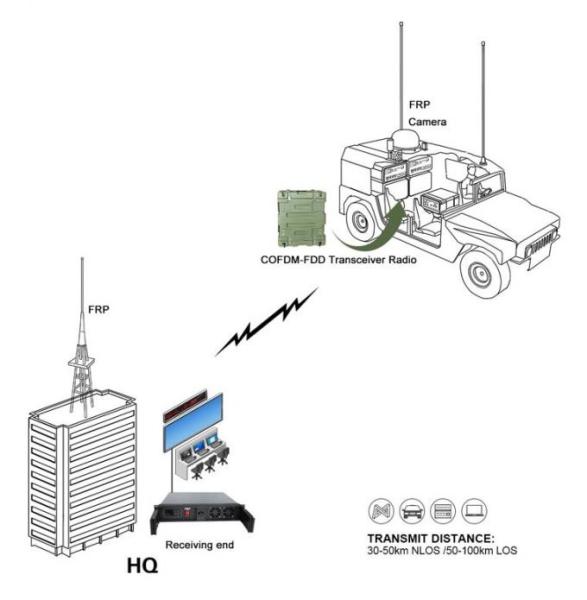

DS-FDD100W uses the latest mobile network communication technology, COFDM-FDD, using COFDM multi-carrier modulation and demodulation technology that supports non-line-of-sight (NLOS) transmission, and supports narrow-band (1MHz), low-latency, high-sensitivity long-distance transmission Application, set two-way network + data + voice intercom + GPS positioning in one. It can help you complete ultra-long-distance wireless links more conveniently and quickly, and is widely used in vehicle-to-command centers, ships, special forces, and emergency fire fighting systems.

Feature:

  • COFDM modulation,different carrier frequencies technology
  • Low latency and great data send from end to end.
  • great transfer rate for uplink and downlink
  • transparent IP ethernet and serial data sync telecommunication
  • Dual frequency is ideal for IP solution long-distance required
  • Dynamic AES encryption 128bits
  • Narrowband 1M/2M/4M/8MHz available
  • Work well in NLOS fast moving condition
  • Integrated design,super linear
  • Small in size,low consumption
  • Simple operation,User easy to set the related parameters by LCD panel with keypads

Specifications:

Model KP-FDD100W
Working voltage DC28V (AC110-240V)
Working current 14.5A/28V
TX output frequency 555MHz (can be customized 300-3300MHz),step in 1MHz
RX output frequency 595MHz (can be customized 300-3300MHz),step in 1MHz
RF bandwidth 1/2/4/8MHz
RF power output 50dBm (100W)
Encryption/decryption mode AES128 bits(user-defined password)
Modulation FDD-COFDM 2K
Transfer rate 2x30 Mbit/s uplink and downlink

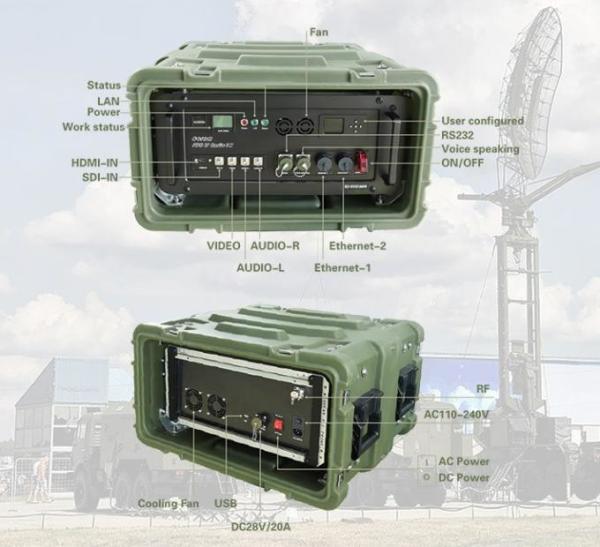

RF connector N type *2
Ethernet Standard RJ45 port *2
Serial port RS232/RS485 serial port
Baud rate 115200bps maximum
Two way audio Aviation plug

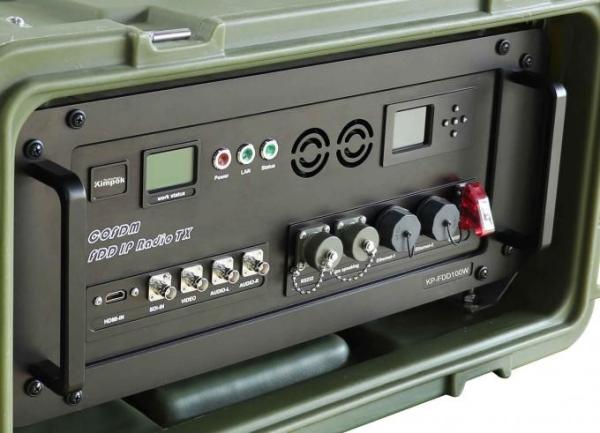

LCD panel with keypad Easy to set the related parameters
Dimension 575*505*360mm
Weight 26kg
Transmit distance 30-50km NLOS /50-100km LOS

Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio CommunicationTactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication

Tactical Ethernet Portable Wireless Video Transmitter 50km Military Radio CommunicationTactical Ethernet Portable Wireless Video Transmitter 50km Military Radio CommunicationTactical Ethernet Portable Wireless Video Transmitter 50km Military Radio Communication
