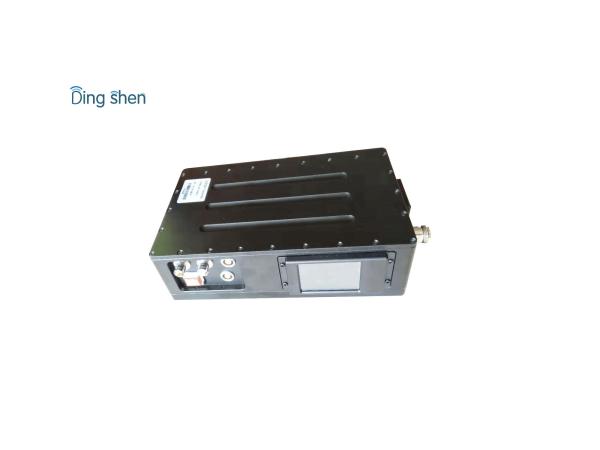

3km NLOS COFDM Wireless Video Transmitter for Outdoor Transmission
3km NLOS COFDM Wireless Video Transmitter for Outdoor Transmission
3km NLOS COFDM Wireless Video Transmitter for Outdoor Transmission
3km NLOS COFDM Wireless Video Transmitter for Outdoor Transmission
3km NLOS COFDM Wireless Video Transmitter for Outdoor Transmission
3km NLOS COFDM Wireless Video Transmitter for Outdoor Transmission
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
220*140*66mm
Certification :
CE/FCC
Place of Origin: :
Guangdong,china
Model Number: :
DS-HDT20W
Modulate: :
COFDM
Frequency: :
300-900Mhz or other frequency customized
VBER :
<1.0E-7
MER :
32dB
Description

Long Range Wireless HD Video UAV cofdm Transmitter

FPV audio video transmitter long range wireless HD video UAV Transmitter is one set NLOS

or LOS long range 1080P or 1080i HD or sdi COFDM video wireless transmitter and receiver.HD video UAV Transmitter transmits data,including audio, video or images

over a NLOS long range.

FPV audio video transmitter is with the core technology 4th generation mobile communication COFDM module and low delay full hd 1080P technique, COFDM wireless video transmitter can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles (NLOS) with carrier velocity greater than 450 km / h.long range wireless uav video transmitter are widely used in public security, armed police, fire, field armies,other military departments and broadcasting, urban management, civil defense, transportation, customs,

oil, mining, water, electricity, geology, finance and other relevant state departments.

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 300-900Mhz or other frequency customized
Output power 10-20W adjustable
Video input HDMI/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 220*140*66mm
Weight 2.5kg

Receiver parameter:

Frequency 300-900MHz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-2/H.265
Screen 4:3 16:9
Video resolution 1080P@4MHz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 480*260*45(1U chassis)
Weight 1.5kg
