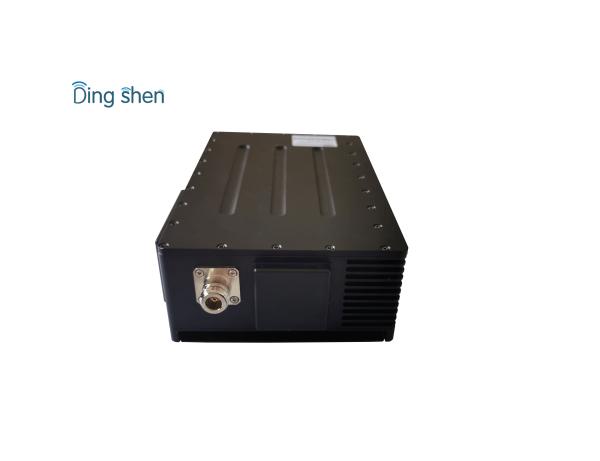

UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
220*140*66mm
Certification :
CE/FCC
Place of Origin: :
Guangdong,china
Model Number: :
DS-HDT20W
Modulate: :
COFDM
Frequency: :
300-900Mhz or other frequency customized
Video input: :
HDMI/SDI; CVBS
Video resolution: :
1920*1080P/I@60fps; 1280*720P/I@60fps
Brand Name: :
Ding Shen
Product name: :
n Wireless Audio Video Transmitterc&Receiver With AES128 Bits
Description

Introduction of 50km - 200km cofdm video transmitter mili tary UAV transmit:

50km - 200km cofdm video transmitter mili tary UAV transmit is a new design ultra-low latency COFDM digital video transmitter from Shenzhen Safe Guard. Designed with 3 video ports, HDMI, SDI, and BNC on the transmitter, which is perfect for analogue or digital cameras.

With 4th generation COFDM, narrow-band, and H.264 encoder technology as its code, 50km - 200km cofdm video transmitter mili tary UAV sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The compact design and low consumption make this HD transmitter enable true long range HD video transmission.

Transmitter parameter:

UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter

Receiver parameter:

Frequency 300-900MHz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-2/H.265
Screen 4:3 16:9
Video resolution 1080P@4MHz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 480*260*45(1U chassis)
Weight 1.5kg

UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm TransmitterUGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter

UGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm TransmitterUGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm TransmitterUGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm TransmitterUGV AGV UAV Portable Wireless Video Transmitter , Mini Cofdm Transmitter
