Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT5000
Place of Origin :
shen zhen china
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
220*150*60mm
Certification :
CE/FCC
Model Number: :
DS-HDT5000
Frequency: :
300-900Mhz or other frequency customized
Consumption: :
<40W
Constellation: :
QPSK(4QAM),16QAM,64QAM
Guard Interval: :
1/32 1/16 1/8 1/4
Bandwidth: :
2/3/4/6/7/8MHz (option)
Description

Best price powerful HD Cofdm analog wireless audio video transmitter and receiver

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

transceiver is implement of transparent IP Ethernet interface that able balance and stable high-speed data rate with 30Mbit/s each for uplink and downlink. It’s ideal for broadcasting, public security system, emergency system, Police, military etc. required for long distance wireless private network links.

Feature:

l COFDM modulation,different carrier frequencies technology

l great transfer rate for uplink and downlink

l transparent IP Ethernet interface and serial port in built

l Dual frequency is ideal for long-distance required

l Dynamic AES encryption 128bits

l Narrowband bandwidth 1M/2M/4M/8MHz available

l Work well in NLOS fast moving condition

l Integrated design, super linear

l User easy to operate the related parameters by LCD panel with keypad

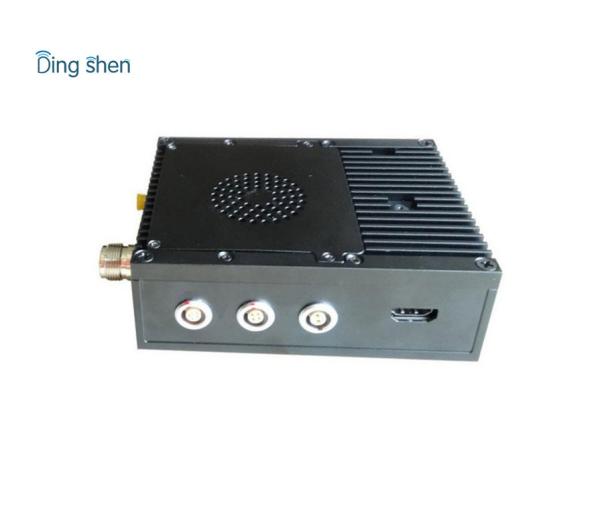

The Transmitter is a new arrival digital wireless video audio transmitter with high power rf output which adopts the latest technologiesof COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video.

The transmitter is compact size with strong power amplifier for long range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. Which make sure working well in fast-moving and NLOS video-link transfer.

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 2~5W adjustable
Video input HDMI,CVBS,AHD,SDI (option)
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 220*150*60mm
Weight 1362g
Box colour Black
Antenna port N type

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Receiver parameter:

Frequency 300-900Mhz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
Working Temperature -20℃~+50℃
Dimension 483*300*44mm
Weight 1.5kg
