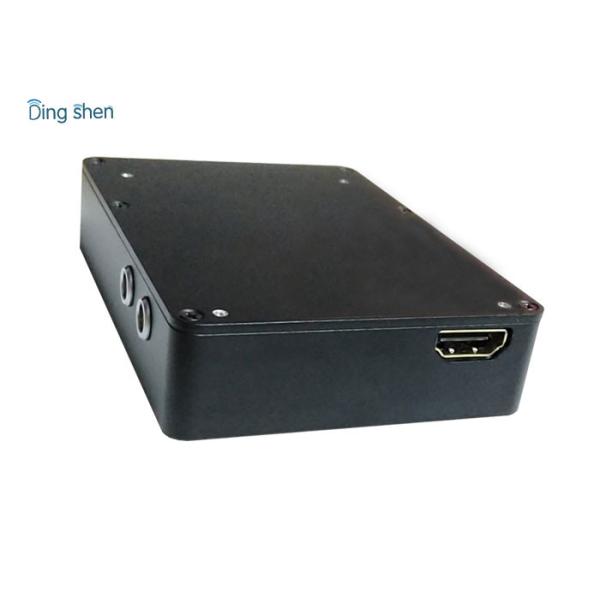

1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
1Watt Wireless HD Video Transmitter Long Distance AES 128 Bits Encryption
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT1W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
72*98*32mm
Certification :
CE/FCC
Place of Origin: :
Guangdong,china
Model Number: :
DS-HDT1W
Frequency: :
300-900Mhz or other frequency customized
Consumption: :
<40W
Constellation: :
QPSK(4QAM),16QAM,64QAM
Guard Interval: :
1/32 1/16 1/8 1/4
Brand Name: :
Ding Shen
Modulation: :
COFDM
Description

Good Quality High Speed Long Range Wireless UAV Hd Video Transmitter Receiver

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

portable wireless audio transmitter and receivers 10-20km drone

1. The transmitter only has 195g without battery

2. COFDM modulation,H.264 compression;

3. HD-MI, SDI ports

4. 1080P/720P resolution;

5. High performance,high capacity power of Li-battery(replaceable);

6. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;

7. Support NLOS,high-speed mobile transmission;

8. High light and low power consumption of the OLED display control interface

Transmitter parameter:

Frequency 300-900Mhz or other frequency customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Transfer rate 6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power 1 watt
Video input HDMI
Video coding MPEG-4/H.264
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 72*98*32mm
Weight 190g without battery; 250g with battery
Box colour Black
Antenna port N type

Receiver parameter:

Frequency 300-900Mhz (option) or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-4/H.264
Screen 4:3 16:9
Video resolution 1920*1080P/I@4Mhz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output; SDI
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 483*300*44mm
Weight 1.5kg
