512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter
512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter
512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter
512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter
512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter
512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter
Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
china
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 working days
Packaging Details :
220*140*66mm
Certification :
CE/FCC
Model Number: :
DS-HDT20W
Modulate: :
COFDM
Frequency: :
300-900Mhz or other frequency customized
Video input: :
HDMI/SDI; CVBS
Video resolution: :
1920*1080P/I@60fps; 1280*720P/I@60fps
Video rate: :
512Kbps-16Mbps (adjustable)
Working voltage: :
DC12V
Output power: :
10-20W adjustable
Data input (option): :
RS232/TTL, up to 115200bps
Video coding: :
MPEG-2/H.264/H265
Brand Name: :
Ding Shen
Product name: :
20W COFDM video transmitter
Description

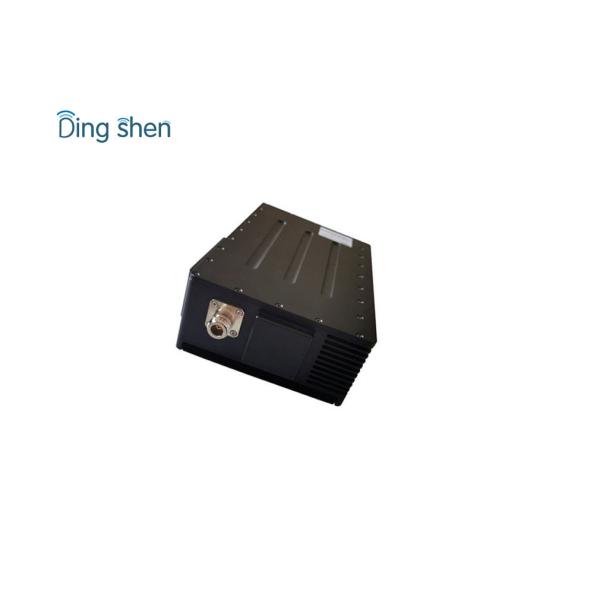

Outdoor Long Range COFDM Wireless HD Video Transmitter for Vehicle

DS-HDT20W is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 300-900Mhz or other frequency customized
Output power 10-20W adjustable
Video input HDM-I/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 220*140*66mm
Weight 2.5kg

Receiver parameter:

Frequency 300-900MHz or other frequency customized
Bandwidth 2/3/4/5/6/7/8MHz (option)
RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance 50Ω
RF input type N type
Modulation COFDM
Constellation QPSK,16QAM,64QAM(adjustable)
FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier 2k
Guard Interval 1/32,1/16,1/8,1/4(adjustable)
Video coding MPEG-2/H.265
Screen 4:3 16:9
Video resolution 1080P@4MHz
Audio output Stereo unbalance 300/ 200mv
AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
Working voltage AC220V/DC12V <1A
working temperature -20℃~+50℃
Dimension 480*260*45(1U chassis)
Weight 1.5kg

512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter512Kbps-16Mbps COFDM Wireless Transmitter , Long Range Hd Video Transmitter

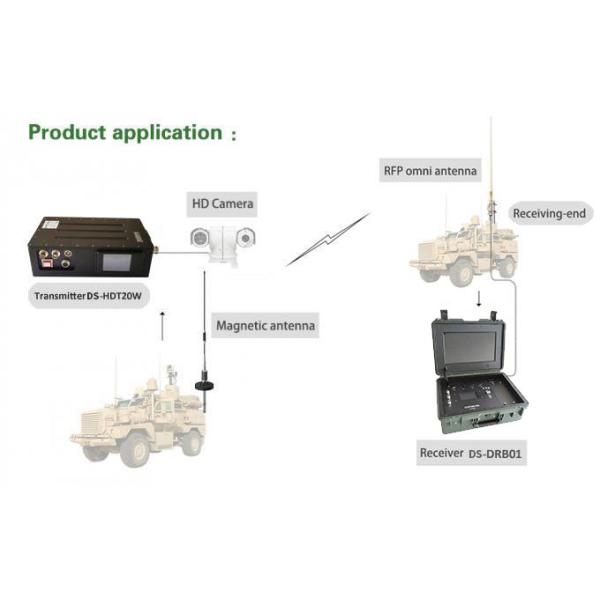

Application:


This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, UAV, UGV, Vehicle, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
