Specifications
Brand Name :
Ding Shen
Model Number :
DS-HDT20W
Place of Origin :
Guang Dong China
MOQ :
1set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
Quantity(Sets) 1 - 100000 >100000
Delivery Time :
3-7 working days
Packaging Details :
220*140*66mm
Certification :
CE/FCC
Place of Origin: :
Guangdong,china
Model Number: :
DS-HDT20W
Modulate :
COFDM
Frequency: :
300-900Mhz or other frequency customized
Video input: :
HDMI/SDI; CVBS
Video resolution: :
1920*1080P/I@60fps; 1280*720P/I@60fps
Product name: :
Broadcast Hd Sdi UAV Long Range Distance Video Transmitt
Video coding: :
MPEG-2/H.264/H265
Description

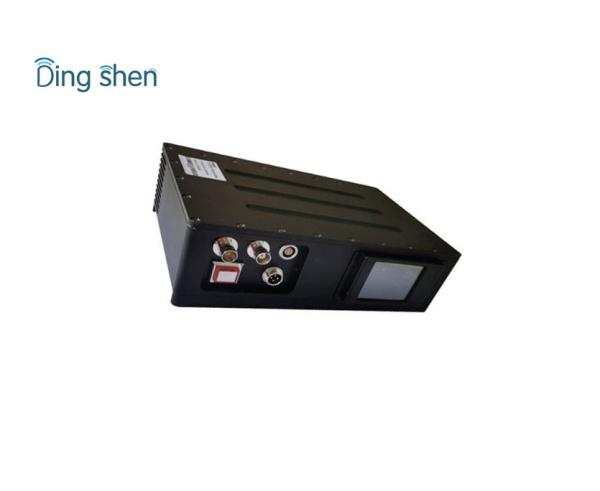

High power HD COFDM video transmitter DS-HDT20W

The model DS-HDT20W is is a versatile digital HD video audio COFDM transmitter.Its RF output up to 20Watt that provides excellent performance in long distance,and it has increased spectral efficiency in 4/8MHz narrow bandwidth .As its long range support and full hd definition with AES user-defined password that is perfectly meet high-end project demands on high safety,signal stability and great performance.

Transmitter parameter:

Modulate COFDM
Working voltage DC12V
Working current ≤6A@DC12V
RF bandwidth 2/4/6/8MHz (adjustable)
Frequency 300-900Mhz or other frequency customized
Output power 10-20W adjustable
Video input HDM-I/SDI; CVBS
Data input (option) RS232/TTL, up to 115200bps
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
Video coding MPEG-2/H.264/H265
Video rate 512Kbps-16Mbps (adjustable)
Encryption AES 128 bits
AV input 1Vp-p, 75Ω. Left and right channel
Video system PAL/NTSC
Power flatness Full band ≤1.5dB
CNR ≥25dBc@48dBm
Second harmonic ≥60dBc
CBER <2.0E-4
VBER <1.0E-7
MER 32dB
Carrier 2k 4k 8k
Constellation QPSK,16QAM,64QAM (option)
FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
Working Temperature -25°C~55°C
Dimension 220*140*66mm
Weight 2.5kg

DC12V CVBS Long Range Wireless Video Transmitter for Vehicle OutdoorDC12V CVBS Long Range Wireless Video Transmitter for Vehicle OutdoorDC12V CVBS Long Range Wireless Video Transmitter for Vehicle OutdoorDC12V CVBS Long Range Wireless Video Transmitter for Vehicle Outdoor

DC12V CVBS Long Range Wireless Video Transmitter for Vehicle OutdoorDC12V CVBS Long Range Wireless Video Transmitter for Vehicle Outdoor
