4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
Specifications
Brand Name :
Ding Shen
Model Number :
DS-DRB04
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Channel: :
4 channels
Frequency: :
300MHz-4400MHz (subdivided)
Monitor: :
17 inch
Modulation: :
COFDM 2K
Video resolution: :
1080P/720P
Encryption: :
AES user-defined password
Description

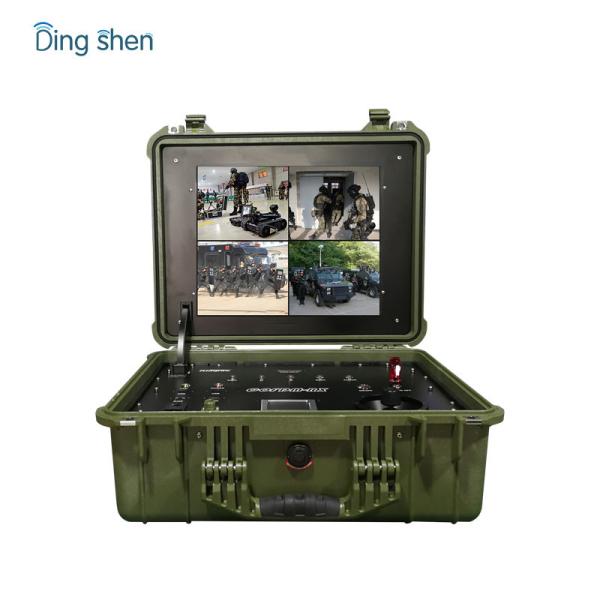

4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver Built-in 17 inch Monitor

Feature:

1) MPEG-2 video compression, DVD video quality;
2) Modular design and highly integrated
3) 17" Standard samsung LCD screen;
4) Built in with 60G SSD memory;
5) Support 4 channels 48 hours continuously recording;
6) Can support RS485/RS232 and av signals transmission simultaneously;
7) Nobody can steal your video and audio because of its data encryption.
8) NTSC/PAL automatically adapt, support user adjustable;
9) Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
10) Adjustable working frequency,bandwidth,RF power and etc.
11) COFDM modulation, Stable signal reception;
12) Can custom made with HDM-I/SDI hd interface output;

Specification:

Frequency
300-800MHz/1.2G/2.4G/5.8GHz (optional)
Memory
1TB
LCD monitor
17inch
RF Level Input
-105dBm~-20dBm
RF Interface
N(F)
AV output
HDM-I; CVBS
Modulation
COFDM
Power supply
AC220V / DC12V
Bandwidth
2/2.5/4/8MHz (adjustable)
Constellation
QPSK,16QAM
Data control interface
Standard RS232/RS485/TTL level,9600,8,N,1
RS232/RS485 data interface
Standard RS232/RS485 level, support 1200~115200bps
FEC
1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval
1/32,1/16,1/8,1/4 (optional)
Video Output
1 line PAL/NTSC analog video
Video Decoding
ISO/IEC13818-2 MPEG-2MP@ML
Resolution
1080P
Lines of horizontal
625 or 525 Line
Audio Output
Analog stereo left and right channels
Data encryption
AES 128/256 bits
Voltage
AC220V±20V, DC14V~DC16V
Work environment
-30~70°
Built in Battery
30000mA, support 4ch 48 hours recording
Size
520*430*210mm
Weight
22kg

4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver
