COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232
COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232
COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232
COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232
Specifications
Brand Name :
Ding Shen
Model Number :
DS-DRB04
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1000PCS per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Resolution: :
1080P/i; 720P/i
Power Supply: :
AC220V / DC12V
Size: :
520*430*210mm
LCD: :
17 inch
Built In Battery: :
30000mA, Support 4ch 48 Hours Recording
Weight: :
22kg
Description

Vehicle Mounted COFDM Video Link Receiver RS232/RS485 4CH Surveillance Rx

Feature:

1) MPEG-2 video compression, DVD video quality;
2) Modular design and highly integrated
3) 17" Standard samsung LCD screen;
4) Built in with 60G SSD memory;
5) Support 4 channels 48 hours continuously recording;
6) Can support RS485/RS232 and av signals transmission simultaneously;
7) Nobody can steal your video and audio because of its data encryption.
8) NTSC/PAL automatically adapt, support user adjustable;
9) Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
10) Adjustable working frequency,bandwidth,RF power and etc.
11) COFDM modulation, Stable signal reception;
12) Can custom made with HD/SDI hd interface output;

COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232

Specification:

Frequency 300-800MHz/1.2G/2.4G/5.8GHz (optional)
Memory 60G/120G, 4 channel 48 hours recording
LCD monitor 17inch
RF Level Input -105dBm~-20dBm
RF Interface N(F)
AV output BNC
Modulation COFDM
Power supply AC220V / DC12V
Bandwidth 2/2.5/4/8MHz (adjustable)
Constellation QPSK,16QAM
Data control interface Standard RS232/RS485/TTL level,9600,8,N,1
RS232/RS485 data interface Standard RS232/RS485 level, support 1200~115200
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video Output 1 line PAL/NTSC analog video
Video Decoding ISO/IEC13818-2 MPEG-2MP@ML
Resolution 1080P/i; 720P/i
Lines of horizontal 625 or 525 Line
Audio Output Analog stereo left and right channels
Data encryption AES
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70°
Built in Battery 30000mA, support 4ch 48 hours recording
Size 520*430*210mm
Weight 22kg

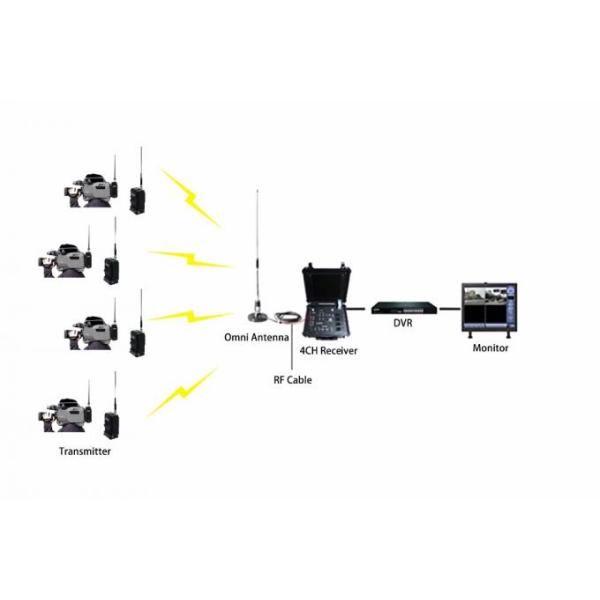

Application:

COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232

COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232COFDM Vehicle Mounted Ground Station Receiver Video Link Transmitter RS232
