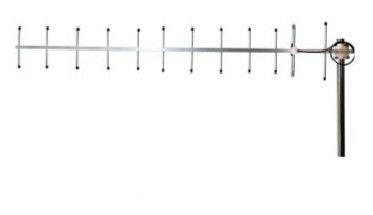

12 Elements 13dBi Outdoor Wireless Antenna 900Mhz Wireless Network Antenna
12 Elements 13dBi Outdoor Wireless Antenna 900Mhz Wireless Network Antenna
Specifications
Brand Name :
Ding Shen
Model Number :
DS-900Y12
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Frequency Range: :
900Mhz
Gain: :
13dBi
Elements: :
13 Elements
Horizontal Beamwidth: :
36°
Power: :
100W
Polarization: :
Vertical Or Horizontal
Description

900Mhz High Gain Yagi Wireless Network Antenna 12 Elements 13dBi

Feature:

  1. High Gain Antenna for 900Mhz wireless AV transmitter/receiver.
  2. This directional YAGI antenna has a 3 meters extension long cable, it's good for outdoor use.
  3. Frequency Range: 806~960Mhz
  4. How to use: Directly connect the Beamed Ant to transmitter or receiver.

Specifications:

Frequency Range 806~960Mhz
Bandwidth 154MHz
Gain 13dBi
Horizontal Beamwidth 36°
Vertical Beamwidth 32°
F/B ratio-dB ≥18
VSWR ≤1.5
Polarization Vertical or Horizontal
Max Power 100W
Nominal Impedance 50Ω
Connector N or customized
Antenna Dimension 1.4m
Weight 1.0kg
Work Temperature -30°~ 60°
Rated Wind Velocity 60m/s
Elements 13 elements

Antenna Erection

12 Elements 13dBi Outdoor Wireless Antenna 900Mhz Wireless Network Antenna

1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).

2 Erect the antennas to the pole with clamp according to polarization required.

3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.

4 Make a shield for protection the water back into the home before RF cables were acrossed indoor
