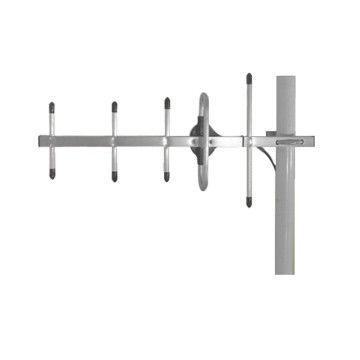

9dBi High Gain Wireless Antenna 1.2GHz Yagi Uda Antenna 150W
9dBi High Gain Wireless Antenna 1.2GHz Yagi Uda Antenna 150W
Specifications
Brand Name :
Ding Shen
Model Number :
DS-YA09
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Frequency Range: :
1.2G/2.4G
Gain: :
9dBi
Power: :
150W
Band: :
340MHz±10
System: :
PAL/NTSC
Unit: :
5 Units
Description

340MHz 9dBi High Gain Antenna 5 Units Yagi Antenna For Wireless Transreceiver

Feature:

  1. High Gain Antenna for 1.2GHz / 2.4GHz wireless AV transmitter/receiver.
  2. This directional YAGI antenna has a 3 meters extension long cable, it's good for outdoor use.
  3. Frequency Range: 1.2GHz / 2.4GHz
  4. How to use: Directly connect the Beamed Ant to transmitter or receiver.

Specifications:

Frequency Range 340MHz±10
Bandwidth 20MHz
Gain 9dBi
Beamwidth 53°
F/B ratio-dB 14
VSWR ≤1.5
Polarization Vertical
Max Power 150W
Nominal Impedance 50Ω
Connector N (optional)
Antenna Dimension 1.4m
Weight 2.4kg
Work Temperature -30°~ 60°
Rated Wind Velocity 60m/s
Explain 5 Units

Antenna Erection

1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).

2 Erect the antennas to the pole with clamp according to polarization required.

3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.

4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
