Lightweight COFDM HD Video Transmitter Module , 5.8 Ghz Video Transmitter Module
Lightweight COFDM HD Video Transmitter Module , 5.8 Ghz Video Transmitter Module
Lightweight COFDM HD Video Transmitter Module , 5.8 Ghz Video Transmitter Module
Lightweight COFDM HD Video Transmitter Module , 5.8 Ghz Video Transmitter Module
Specifications
Brand Name :
Huanuo
Model Number :
SK-512AV
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
500 pieces per month
Delivery Time :
1~2 working days
Packaging Details :
Professional carton box package
Voltage :
DC 6~15V
Bandwidth :
2/4/8MHz
RF interface :
SMA
Encoding :
H.264
Modulation :
Cofdm
Constellation :
QPSK,16 QAM,64 QAM
Carriers :
2K
Dimensions :
70mm*45mm
Description

Lightweight cofdm module mini zise cofdm video transmitter module

Product description:

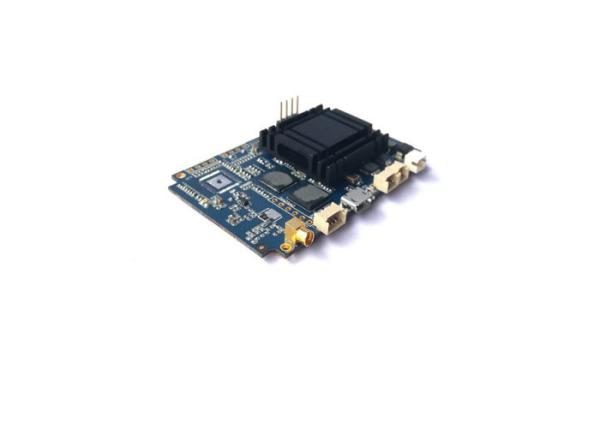

SK-512AV COFDM wireless video transmitter module,adopted

advanced composite NTSC/PAL video pre-processing technology and

and efficient video encoding algorithm, improve the encoding efficiency,reduce the encoding time delay,The algorithm is optimized

and the bit error rate is improved and the quality of the image is further improved. The best image compression effect can be achieved at the lowest bit rate.

Product features:

  • Using COFDM modulation technology
  • Support non-standard 128 bit AES encryption
  • Support digital panel operation and display, easy to use
  • Highly integrated modular design, small size, stable performance

Technical characteristics

Model SK-512AV
Voltage DC 6~15V
Current 420mA-12V
Video input CVBS
Audio Channel 2 channel
Bandwidth 2/4/8MHz
Radio Frequency 300MH~860MHz stepping in 1MHz(other frequencies on request)
RF Output Power 0dBm(can be customized)
RF interface SMA
Encryption dynamic 128 bit AES encryption
FEC 1/2,2/3,3/4,5/6,7/8
Guard Interval 1/32,1/16,1/8,1/4
Carriers 2K
Encoding H.264
Modulation COFDM
Constellation QPSK,QAM16,QAM64
Parameter control mode Through OLED display panel to setting the relevant parameters
Dimensions 70mm*45mm
Bolt hole spacing 58mm*41mm
