Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
Specifications
Brand Name :
SUNYI
Model Number :
Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
Certification :
CE, SGS, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 35,000 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 set per month
Delivery Time :
50 days
Packaging Details :
wrapped with plastic films, packed by strong wooden boxes
Product name :
Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
Type :
fully automatic capsule filling sealing machine
Voltage (v) :
220,110,380
Housing material :
304 Stainless Steel
Application :
Food,Chemical,Medical,Beverage,Coffee/Tea Packing
Warranty :
1 Year
Packaging material :
Plastic
Driven type :
Electric and Pneumatic
Description

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

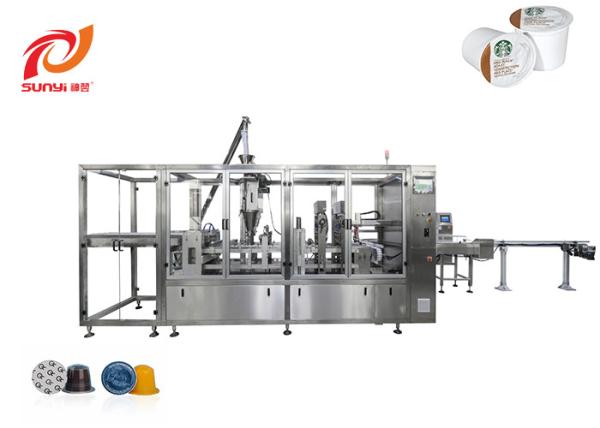

Introduction of the four lanes kcup capsule filling sealing machine

The four lanes kcup coffee capsule filling sealing machine is the fully automatic one. The four lanes kcup coffee capsule filling sealing machine has the glass doors, it is not only easy to check the operation, but also keep the safety of the operators. Once the door opened, the machine will stop working.

The four lanes kcup coffee capsule filling sealing machine has a movable hopper, it can be convenient for you to change the filling material and also do the cleaning. What's more, the four lanes filling sealing machine can be filled into more than one kind of capsules, not only the kcups, but also can be nespresso, lavazza, dolce gusto and so on, just to change the molds.

Features of the four lanes kcup capsule filling sealing machine

• The machine’s contact with food area is all stainless steel.
• High strength and high precision chain wheel, gearbox, bearing and dividing box determine the fast, stable and accurate operation of the machine, long service life and pleasant rhythm.
• The high-quality pneumatic components make the air circuit of the machine run stably, the air pressure inside the machine is stable, and the air flow is even, which greatly avoids the failure, so as to greatly improve the production capacity and guarantee the service life of the machine.
• Electrical parts are from most famous brands with best quality (Schneider, Siemens, Allen-Bradley…)
• Capsule sorter and lifting and conveying system greatly save labor costs;
• UV sterilization system provides a good production environment for capsule production;
• Electromagnetic storm has largely solved the problem of static electricity in the process of powder packaging, resulting in the failure of packaging process;
• The peristaltic pump drop filling device is ready for adding liquid flavors in the capsule in the future;
• The second strengthen heat seal. It eliminates the risk of defective products entering the market, even if the first heat seal fails;
• The online weighing device feeds the data back to the PLC in real time, identifies the defective products and automatically eliminates them;
• Discharging over-turning device prepares for the following packaging of the capsule, bagging or cartoning;
• Automatically counts the output of the finished capsules;
• Roll film cutting and sealing system: with high-precision fine tooth cylinder blade, it can realize online cutting and sealing at the same time, with sealing deviation of 0.1mm. With identification mark system, servo motor drives roll film expansion and dragging, with high precision.
• With nitrogen filling device, it creates a low-pressure environment, when nitrogen source pressure and flow rate meet the conditions, the residual of Oxygen less than 2% in the capsule, so that the fresh coffee is sealed and wrapped by highly pure nitrogen;
• The remote control system, to a great extent, solves the problem of international PLC and HMI inconsistency of the software installed on the PC side, and the program update, inspection and backup of the machine can not be solved because of the network problems. Moreover, the customer can observe whether the parameter value of the machine is normal, the failure rate of the machine, the production efficiency and so on in real time every day, which are all through the mobile app can be achieved.
• Screw feeder and vacuum feeder, according to the choice of customers to configure the corresponding automatic replenishment system.

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

Procedures of the four lanes kcup capsule filling sealing machineKcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

capsules horizontal loading with a detection to confirm whether the capsules are in or not

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

UV lamp to kill the bacteria in the environment

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine
servo motor controlled auger filling, customized filling weight

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

precut lids

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

two procedures of heat sealing to make sure that every capsules can be well sealed

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

robot arms to carry out the finished products automatically

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

rejection station, you can set the weight range of the capsules you want, and when the capsules reach this station, it will detect if the capsules are qualified, if not, it will blow them up.

Specifications of the four lanes kcup capsule filling sealing machine

Filling accuracy ±0.15g
Warranty 1 year
After-sale services supply training and test; give operation manual installation and operation video; do after-sale service overseas; 24-hours online support
Hopper capacity 10-25L / 110L
Max speed 12,000 capsules per hour
Control system PLC
Port of shipping shanghai
Dimension 5850(L)x4490(W)x2200(H)mm
Net weight 1200kg
Power supply AC 110V 220V 380V 20KW
Shape linear
Driven type Electric-Pneumatic
Automatic grade fully automatic

Finished products of the four lanes kcup capsule filling sealing machine

Kcup Newest Factory Manufacture Four Lanes Filling Sealing Machine Kcup Capsule Filling Machine

It can be filled with 10-11g coffee powder depending on the powder and also the inner filter material.

The inner filter can be divided into paper filter / synthetic filter.

The diameter is 51mm.
