One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
Specifications
Brand Name :
SUNYI
Model Number :
single lane kcup filling and sealing machine
Certification :
CE, SGS, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 9,000 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 set per month
Delivery Time :
30 days
Packaging Details :
wrapped with plastic films, packed by strong export standard wooden boxes
Product name :
Single Lane Kcup Filling Machine
Material :
Food standard 304 stainless steel
Filling accuracy :
±0.15g
Hopper capacity :
1.0L-2.5L / 110L
Control system :
PLC remote control system
Shape :
linear machine
Dimension :
1734(L)x762(W)x2432(H)mm
Net weight :
650 kg
Description

One Way Factory Direct Single Lane Kcup Coffee Capsule

Filling And Sealing Machine

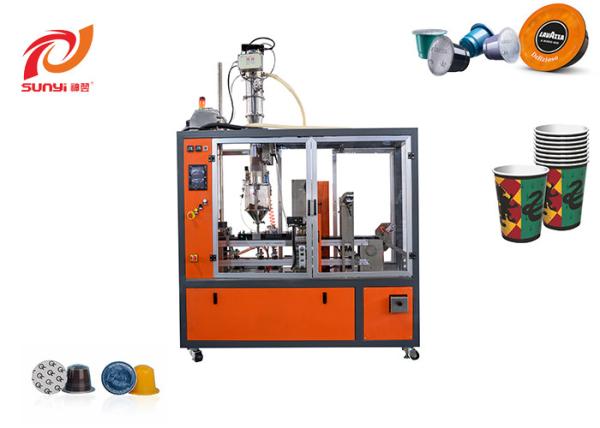

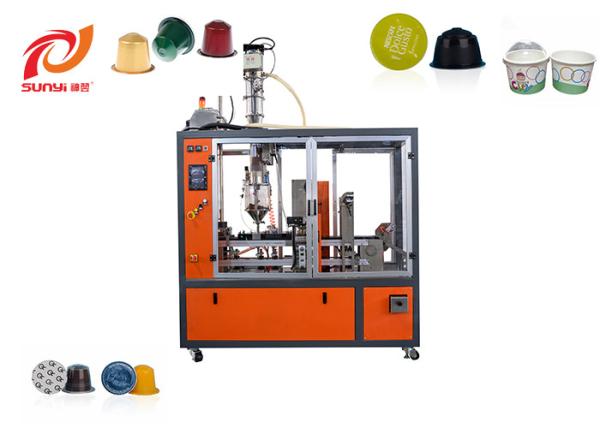

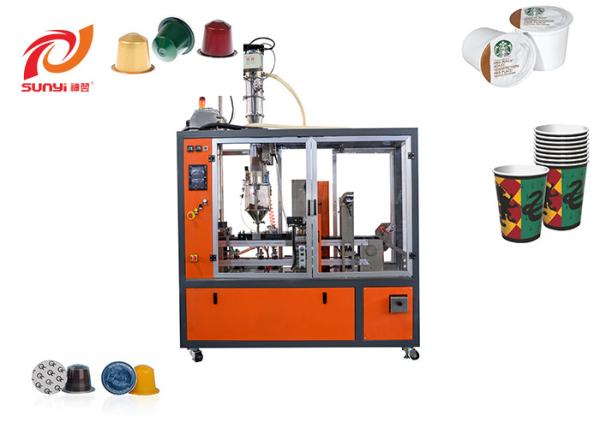

Introdution of the single lane kcup coffee capsule filling and sealing machine

This nespresso coffee capsule filling and sealing machine can be equipped with individual process modules for a wide range of applications. It is of great ease to change the mould for different types using on the same machine. It can inject the unqualified products automatically. You can fill in liquid, powder and granule materials, such as coffee powder, milk powder, tea, yogurt and other materials at you will.

It can be used for Compatible Nespresso capsules, Dolce gusto, Lavazza blue or point, Pod, K-cup, Kshot and so on.

Parameters of the single lane kcup coffee capsule filling and sealing machine

Filling weight range 0-12g (customized)
Filling accuracy ±0.15g
Residual oxygen ＜1%
Max speed 1800 BPH
Hopper capacity 1.0L-2.5L / 110L
Control system PLC ( OMRON, SCHNEIDER, ROCKWELL )
Displayer 7 inch touchscreen
Power supply AC 110V, 220V, 380V 50-60Hz
Air supply 6 BAR
Shape linear
Warranty one year
Coffee capsule material PP
Dimension 2335(L)x1150(W)x2385(H)

Optional choices of the single lane kcup coffee capsule filling and sealing machine

One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine

Usages of the single lane kcup coffee capsule filling and sealing rotary machine

1. cup loading
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
The elevator will convey empty coffee capsules to automatic sorter machine. It can load 2000-3000 pieces capsules, shortening the time that people add empty capsules into the machine by hand. Every 1 hour you need to add capsules. And when lacking capsules, the sorter will send capsules automatically.

2. auger filling
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
Auger filler is driven by Servo motor.
Constant speed mixing device ensures that the density of coffee powder is always uniform and there is no cavity in the hopper.
Visualized hopper can be pulled out and moved for easy cleaning.
Powder level detection and vacuum feeder convey powder automatically.
Special filling outlet structure ensures stable weight and no powder spreading.
3. tamp and clean
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
Powerful vacuum clean-up device for top edge of capsules/cups to get a good sealing effect.
Pressure adjustable stamping, it compacts powder strongly, when brewing coffee, it will get a good espresso and extrac more crema.
4. roll films
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
With an eyemark, it can make sure that the logo is on the capsule's center. Cutting and sealing in one step will realize lids to close capsule's top precisely.
5. heat sealing
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
After the first cutting and sealing top lids, there has a double sealing station, to guarantee lids sealing reach 100% without any problem, and no capsules leak gas. Thus can keep coffee aroma.

6. output
One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
The mechanism arm will pick finished capsule out from machine's mold,and place it on the 1 meter conveyor, it outfeed capsules steadily. The conveyor will be easily to second package and go into boxes.

Product samples

One Way Factory Direct Single Lane Kcup Coffee Capsule Filling And Sealing Machine
