Single Way Aluminum Nespresso Coffee Capsule Filling Sealing Machine

Introdution of the single lane nespresso coffee capsule filling and sealing machine

This nespresso coffee capsule filling and sealing machine is easy-operating and small-volume machine,which is exquisite appearance and deeply attracts customers.The machine is excellent choice for major manufacturers to produce various capsules suitable for coffee machine.The nespresso coffee capsule filling sealing machine is hot-sale production in our company, equipped with 7-inch touchscreen, which is the first choice for new customers.We sincerely invite you to our factory to see real machine. The maximum speed of machine is 50 pcs/minute. Filling accuracy is ±0.1~0.3g.The weight of machine is 700kg and Gross weight is 750kg. We are happy to invite customers to our company to see real nespresso filling sealing machine. Looking forward to your coming.

It can be used for Compatible Nespresso capsules, Dolce gusto, Lavazza blue or point, Pod, K-cup, Kshot and so on.

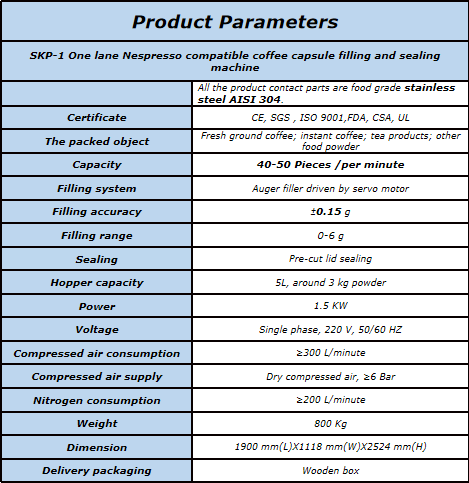

Parameters of the single lane nespresso coffee capsule filling and sealing machine

Characters of the single lane nespresso coffee capsule filling and sealing machine

•The whole machine adopts stainless steel materials;

•It adopts high precision of the chain wheel, gearbox, bearing and dividing box which determine the fast, stable and accurate operation of the machine to prolong the service lifetime and the pleasant rhythm.

•The high-quality pneumatic components make the air circuit of the machine run stably. The stable air pressure and the even air flow inside the machine greatly avoid the failure, namely can greatly improve the production capacity and guarantee the service lifetime of the machine;

• Electrical parts are from most famous brands with best quality (Schneider, Siemens, Allen-Bradley…)

• UV sterilization system provides a good production environment for capsule production;

•Electromagnetic storm has largely solved the problem of static electricity in the process of powder packaging, resulting in the failure of packaging process;

•The peristaltic pump drop filling device is ready for adding liquid flavors into the capsule in the future;

•The second strengthen heat sealing. It eliminates the risk of defective products entering the market, even if the first heat seal fails;

•The online weighing device feeds the data back to the PLC in real time, identifing the unqualified products and automatically injects them;

•Discharging over-turning device prepares for the following packaging of the capsule, bagging or cartoning;

•Automatically counts the output of the finished capsules;

•Roll film cutting and sealing system with high-precision fine tooth cylinder blade can realize online cutting and sealing at the same time. The sealing deviation is within 0.1mm. With the identification mark system, servo motor drives roll film expansion and dragging precisely;

• With nitrogen filling device, it creates a low-pressure environment. When the nitrogen source pressure and flow rate meet the conditions, the residual of Oxygen will be reduced to less than 1% in the capsule, so that the fresh coffee is sealed and wrapped by highly pure nitrogen;

•The remote control system, to a great extent, solves the problem of international PLC and HMI inconsistency of the software installed on the PC side. Moreover, the customer can observe the condition of the parameter value of the machine, the failure rate of the machine, the production efficiency and so on in real time every day through the mobile app;

•Screw feeder and vacuum feeder, according to the choice of customers to configure the corresponding automatic replenishment system.

Usages of the single lane nespresso coffee capsule filling and sealing rotary machine

Powerful vacuum clean-up device for top edge of capsules/cups to get a good sealing effect.
Pressure adjustable stamping, it compacts powder strongly, when brewing coffee, it will get a good espresso and extrac more crema.

With an eyemark, it can make sure that the logo is on the capsule's center. Cutting and sealing in one step will realize lids to close capsule's top precisely.

Product samples
