SKP-4 Four Lanes High Speed China Best Recyclable Aluminum Nespresso Coffee Capsule Filling Sealing Machine

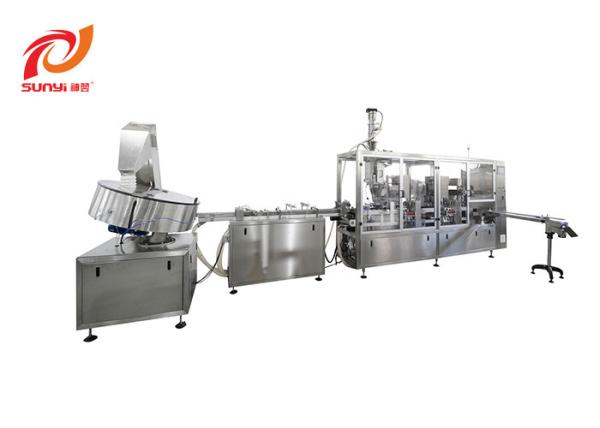

Introduction of the four lanes aluminum nespresso coffee capsule filling and sealing machine

The four lanes recyclable aluminum nespresso coffee capsule filling sealing machine has been specially designed to offer a wide range of functions for use in hygiene applications. The modular bay design and rectangle plate transport system are easy to clean. In addition to filling and sealing of performated containers of any type, the four lanes recyclable aluminum nespresso coffee capsule filling sealing machine can also be extended with various functions.

Paramaters of the four lanes aluminum nespresso coffee capsule filling and sealing machine

Advantages of the four lanes aluminum nespresso coffee capsule filling and sealing machine

Transport Module

1. Base frame with clearly separated product and drive elements

2. Container transport on plates along high-precision spring steel belt in an rectangle shape system

3. Excellent positioning accuracy by means of servo motor

4. Functions can be freely arranged along the touchscreen

5. Integration of insulated area for processing under shielding gas, controlled ambient or laminar flow conditions

6. Machine end designed for attachment of various exit options

Container Infeed / Destacker

1. Detacker for stackable containers with knives or sliders

2. Direct loading into stack channels or through buffer system

3. Sorting pot infeed and centrifugal transfer for non-stackable containers supplied in stock

Punching / Sealing / Welding Modules

1. Hot-sealing or ultrasound technology with material supplied on reels or in magazines

2. Punching and sealing in a single process

3. Ultra-precision sealing station with closed force flux

4. Available with lifting and swivelling tools for easy cleaning and maintenance

5. All tools with individual guide system and air spring support

6. Sealing parameters can be individually set and monitored for each lane

Filling System

1. Dosing of powdery products by means of volumetric screw conveyor or alternative filling system

2. Dosing of liquids through various dosing systems (peristaltic pump)

3. Dosing systems designed for individual lane operation as standard

Control System

1. Weighing system with feedback signal to dosing unit for automated weight control

2. Filling level monitoring with optical sensors

3. Camera monitoring for functional and visual defects

Control / Operation

1. Touchscreen with process visualization

2. Continuous monitoring of all relevant process parameters

3. Control systems from Simens or Schneider or Omron

Additional Functions

1. UV lamp to kill the bacteria in the environment

2. Nitrogen flushing system to keep the remained oxygen content less than 1%

3. Visual hopper to clearly check the situation of the powder

4. Anti-static device to avoid the spread of the powder

Capsules of the four lanes aluminum nespresso coffee capsule filling and sealing machine

It can be fill into 0-6g coffee powder, and can be protected for 36 months.

The sealing film is aluminum foil, and its thickness is 30 microns.

The diameter of the capsule is 37mm.

ps: we also have PP nespresso coffee capsules and biodegradable nespresso coffee capsules.

Certificates of the four lanes aluminum nespresso coffee capsule filling and sealing machine
