4 Lanes Linear Shape China Best Seller Dolce Gusto Coffee Capsule Filling Sealing Machine

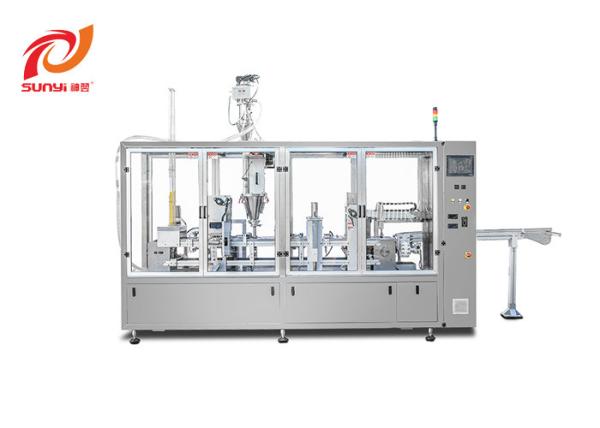

Introduction of the four lanes dolce gusto capsule filling and sealing machine

The machine is used to make dolce gusto coffee capsules, it can be filled with coffee powder, milk powder, tea and other materials. It applies an industrial automation, completing the required processes of product packaging automatically. So it has higher production efficiency. The whole frame of the machine adopts 304 stainless steel.

It has four lanes, so it produces about 9,000 to 12,000 capsules in an hour. If you have higher quantity demand, you can choose this one.

Characters of the four lanes dolce gusto capsule filling and sealing machine

Transport Module

1. basic dimensions of adaptable lengths

2. container transport by slats on a maintenance-free, backlash-free timing belt

3. central servo motor drive

4. free choice in positioning of functions

5. machine end with various exit options

6. option for integration of a gas-tight area for filling under inert gas

Container-Destacking Module

1. versions with knife, sliding plates or screw destacker

2. manual or fully automatic load from cartoning box

Punching / Sealing / Welding Module

1. free-standing, self-sufficient module with closed force flow

2. punching and sealing in single step

3. heat sealing or ultrasonic welding from roll stock or magazine

4. integrated container and tool lift

5. lift and swivel tool machanism for easy accessibility

6. separatedly mounted and controlled tools

7. individual temperature control of each tool

Filling Module

1. free-standing, self-sufficient module

2. nitrogen flushing system to keep the remained oxygen less than 1%

3. individual servo motor control

Weighing Module

1. free-standing, self-sufficient module

2. reject the unqualified ones due to the weighing check

Controls

1. standard system from Siemens, Rockwell, Schneider, Omron and so on

2. other manufactures on request

Optional parts of the four lanes dolce gusto capsule filling and sealing machine

Specifications of the four lanes dolce gusto capsule filling and sealing machine

Capsules of the four lanes dolce gusto capsule filling and sealing machine

It can be filled with 0-8g coffee powder or 0-12g milk powder.

The diameter is 54mm.

It has two films. The perforated films and the top barrier plastic films.
