Specifications
Brand Name :
B&R
Model Number :
H016
Certification :
CCPIT
Place of Origin :
China
MOQ :
1000pcs
Price :
USD 3.35-3.75/pcs
Payment Terms :
T/T or L/C
Supply Ability :
20000pc/month
Delivery Time :
30days
Packaging Details :
40pcs/ctn, 44X37X28.5cm, 22/23kg
Material :
Zamak (zinc alloy)
Color :
Antique bronze
Other color :
Gold,Antique bronze,Antique copper(red bronze)
Usage :
European coffin
struction :
bar coulbe be make longer
Size :
30*7.5
Description

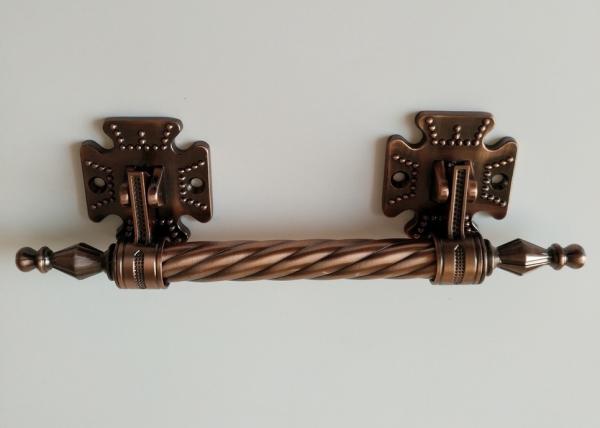

Long Metal Coffin Barref H016 Coffin Handles Antique Bronze 30*7.5 Cm

Main information:

Product name: ZAMAK COFFIN HANDLE/ COFFIN BAR

Model: H016

Brand: B&R

Application: European style coffin

Origin: China

Manufacturer: Sumer International (Beijing) Trading Co.,Ltd

Product detail:

Size: 30*7.5 cm

Material: Zamak (Zinc alloy)

Optinal Color: Gold, Silver,antique Bronze or antique copper (red bronze)

Attached on coffin by screw

MOQ:1000 pcs

Main feature:

Professionally engaged in funeral field over 10 years;

Customized products acceptable;

Good quality and competitive price;

More Information:

zamak 3

Zamak 3 is the de facto standard for the zamak series of zinc alloys; all other zinc alloys are compared to this. Zamak 3 has the base composition for the zamak alloys (96% zinc, 4% aluminium). It has excellent castability and long term dimensional stability. More than 70% of all North American zinc die castings are made from zamak 3.

Zamak 3 composition per standard

Alloying elements Impurities
Standard Limit Al Cu† Mg Pb Cd Sn Fe Ni Si In Tl
ASTM B240 (Ingot) min 3.9 - 0.025 - - - - - - - -
max 4.3 0.1 0.05 0.004 0.003 0.002 0.075 - - - -
ASTM B86 (Cast) min 3.5 - 0.025 - - - - - - - -
max 4.3 0.25 0.05 0.005 0.004 0.003 0.1 - - - -
EN1774 (Ingot) min 3.8 - 0.035 - - - - - - - -
max 4.2 0.03 0.06 0.003 0.003 0.001 0.02 0.001 0.02 - -
EN12844 (Cast) min 3.7 - 0.025 - - - - - - - -
max 4.3 0.1 0.06 0.005 0.005 0.002 0.05 0.02 0.03 - -
JIS H2201 (Ingot) min 3.9 - 0.03 - - - - - - - -
max 4.3 0.03 0.06 0.003 0.002 0.001 0.075 - - - -
JIS H5301 (Cast) min 3.5 - 0.02 - - - - - - - -
max 4.3 0.25 0.06 0.005 0.004 0.003 0.01 - - - -
AS1881 min 3.9 - 0.04 - - - - - - - -
max 4.3 0.03 0.06 0.003 0.003 0.001 0.05 - 0.001 0.0005 0.001
GB8738-88 min 3.9 - 0.03 - - - - - - - -
max 4.3 0.1 0.06 0.004 0.003 0.0015 0.035 - - - -
†Impurity

Zamak 3 properties

Property Metric value Imperial value
Mechanical properties
Ultimate tensile strength 268 MPa 38,900 psi
Yield strength (0.2% offset) 208 MPa 30,200 psi
Impact strength 46 J (56 J aged) 34 ft-lbf (41 ft-lbf aged)
Elongation at Fmax 3%
Elongation at fracture 6.3% (16% aged)
Shear strength 214 MPa 31,000 psi
Compressive yield strength 414 MPa 60,000 psi
Fatigue strength (reverse bending 5x108 cycles) 48 MPa 7,000 psi
Hardness 97 Brinell
Modulus of elasticity 96 GPa 14,000,000 psi
Physical properties
Solidification range (melting range) 381—387 °C 718—729 °F
Density 6.7 g/cm3 0.24 lb/in3
Coefficient of thermal expansion 27.4 μm/m-°C 15.2 μin/in-°F
Thermal conductivity 113 W/mK 784 BTU-in/hr-ft2-°F
Electrical resistivity 6.37 μΩ-cm at 20 °C 2.51 μΩ-in at 68 °F
Latent heat (heat of fusion) 110 J/g 4.7x10−5 BTU/lb
Specific heat capacity 419 J/kg-°C 0.100 BTU/lb-°F
Coefficient of friction 0.07

More Picture:

Long Metal Coffin Barref H016 Coffin Handles Antique Bronze Herrajes Para Ataudes

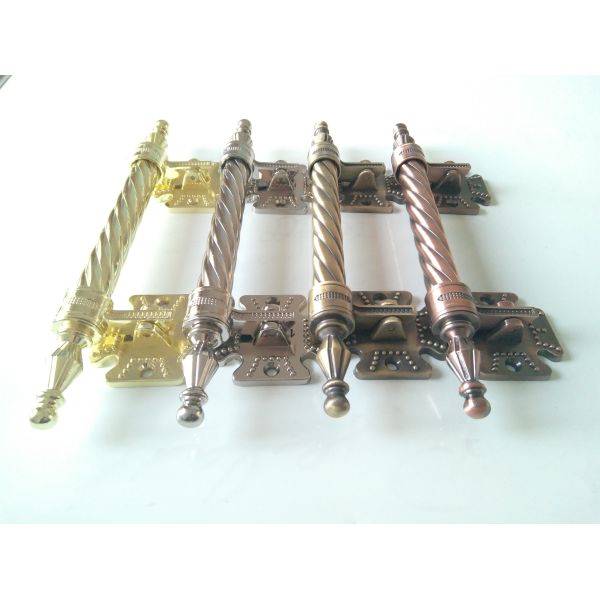

H016 coffin handle in 4 colors

Long Metal Coffin Barref H016 Coffin Handles Antique Bronze Herrajes Para Ataudes

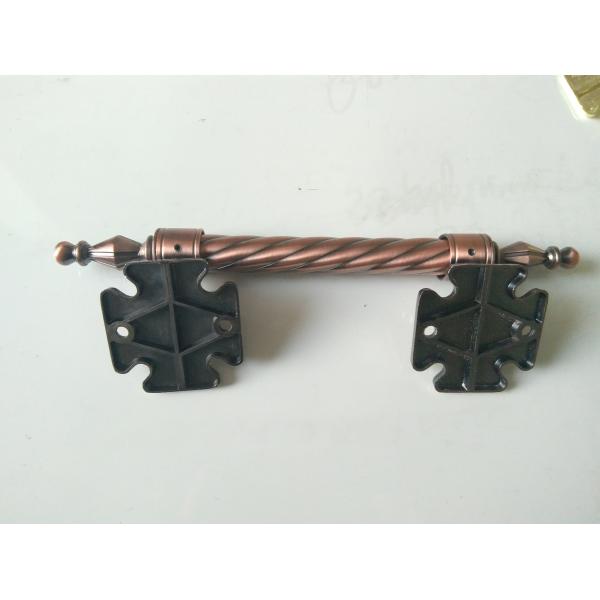

H016 coffin bar antique bronze color back

Long Metal Coffin Barref H016 Coffin Handles Antique Bronze Herrajes Para Ataudes

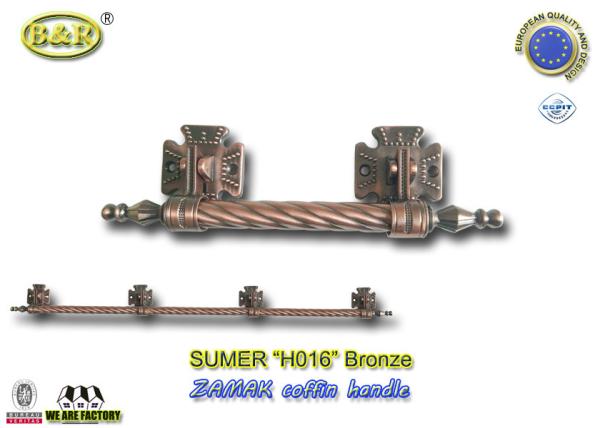

H016 COFFIN BAR ZAMAK GOLD---SILVER--ANTIQUE BRONZE---ANTIQUE COPPER

Long Metal Coffin Barref H016 Coffin Handles Antique Bronze Herrajes Para Ataudes

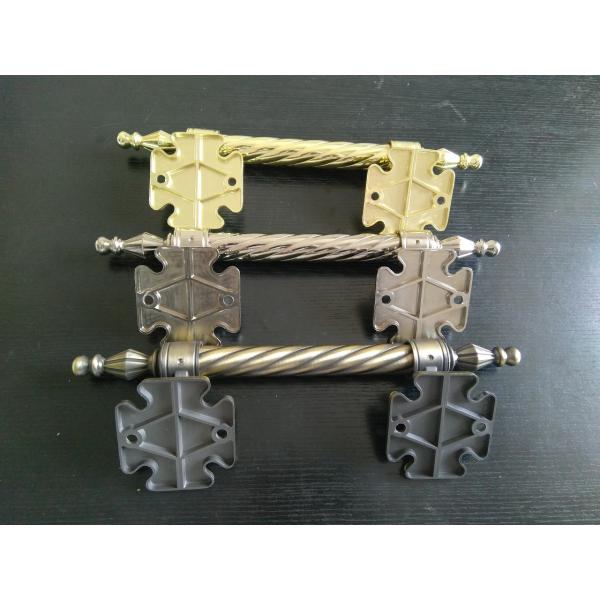

Semi products

Long Metal Coffin Barref H016 Coffin Handles Antique Bronze Herrajes Para Ataudes

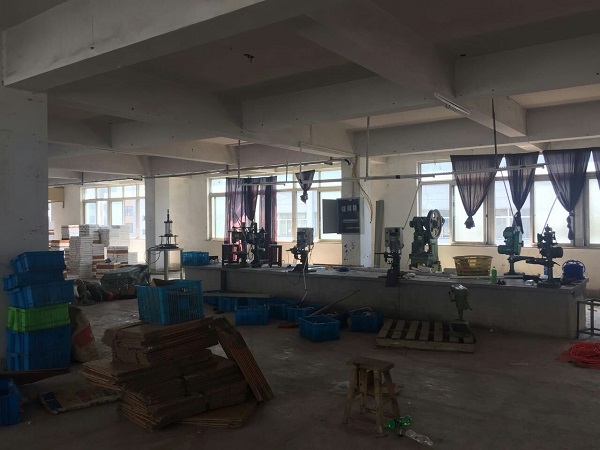

Factory views
