Safe Operation 90 Degree Hydraulic Coil Tilter Coil Turnover Machine Steel Coil In Line Tilter
Safe Operation 90 Degree Hydraulic Coil Tilter Coil Turnover Machine Steel Coil In Line Tilter
Safe Operation 90 Degree Hydraulic Coil Tilter Coil Turnover Machine Steel Coil In Line Tilter
Safe Operation 90 Degree Hydraulic Coil Tilter Coil Turnover Machine Steel Coil In Line Tilter
Specifications
Brand Name :
jlpack
Model Number :
FZ-04
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200 sets/Year
Delivery Time :
Stand-alone 1 week ,the packing line 150days
Packaging Details :
Wooden case /standard container
Type :
Coil Turnover Machine
Application :
Metal coils, moulds,paper rolls,barrels
Power output :
About 1.5kw
Max loading :
4 tons
Transfer mode :
Hydraulic
Turning degree :
90 degree
Color :
Standard color
Turning speed :
40s
Warranty :
12 months
Description

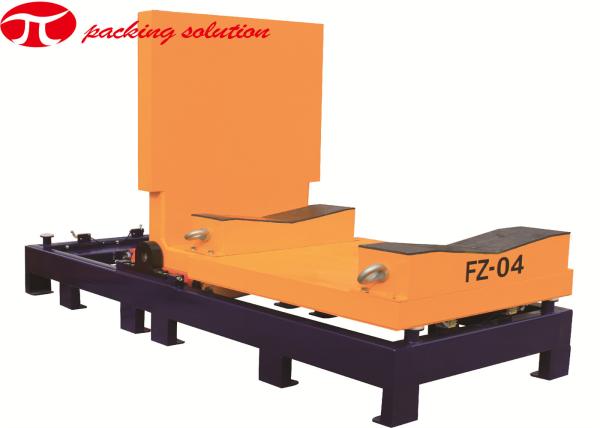

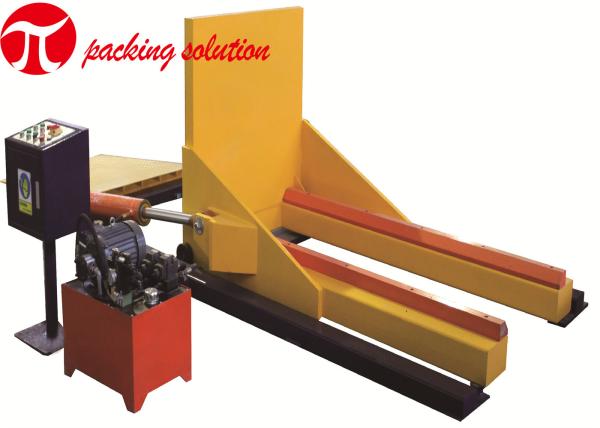

Safe Operation 90 Degree Hydraulic Coil Tilter Coil Turnover Machine Steel Coil In line Tilter

MACHINE APPLICATION:

The FZ-04 Hydraulic coil tilter can be used for dislocation of different horizontal or vertical objects.

It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable.

.

MAIN PARAMETERS:

Item data FZ-04
Max loading 4T
One-way turn-over speed 40s
Transfer mode Hydraulic
Power output Approx. 1.5KW
Working mode Manual switch / remote control
Product width 600 mm
Product diameter 1500mm
Product weight Within 5000kg
Dimension Approx. L2200mm/W1000/H1700mm
Power voltage AC 380V, 3 phase 5wires

Note: the datas are only for reference, the machine can be custom designed according to specific object size.

BASIC FEATURES:

  • Special double chain drive, oblique gear and worm speed reducer.
  • Reasonable four-roller device for object holding makes tuning smooth and steady.
  • Independent electrical panel control for easy and safe operation.
  • Micrometric setting for adjusting the floor level.
  • Converter controls, Fast, stable and safe.
  • Both electric & mechanical limit restrictors adopted to grantee safe operation.
  • The machine can be stopped freely.
  • Emergence stop and position locking function avoid rotation.
  • The machine will stop automatically when turning process finished.
  • Emergency stop button can stop the machine rapidly in emergency conditions
