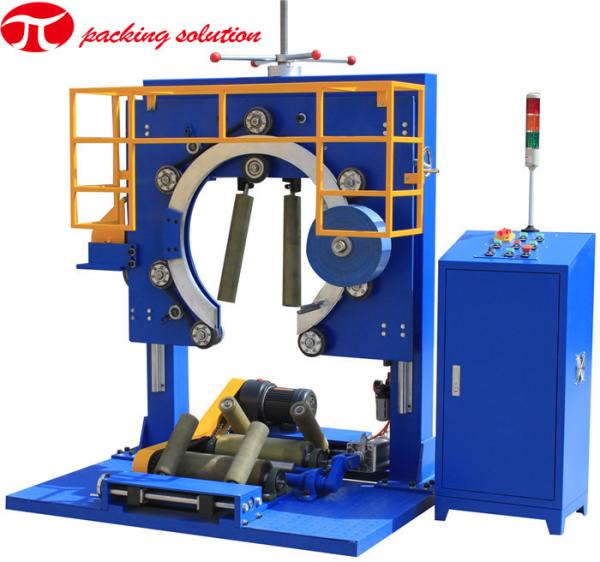

Trolley Type Vertical Strand Coil Packaging Machine GD800 60r/Min Electric Driven
Trolley Type Vertical Strand Coil Packaging Machine GD800 60r/Min Electric Driven
Trolley Type Vertical Strand Coil Packaging Machine GD800 60r/Min Electric Driven
Trolley Type Vertical Strand Coil Packaging Machine GD800 60r/Min Electric Driven
Specifications
Brand Name :
jlpack
Model Number :
GD800
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200 sets/Year
Delivery Time :
Stand-alone 1 week ,the packing line 150days
Packaging Details :
Wooden case /standard container
Application :
Steel coils, steel wires, copper coils
Ring speed :
Appr. 20-90r/min
Driven type :
Electric
Voltage :
380V/50HZ
Packaging material :
paper, plastic
Roller speed :
5-8m/min
Usage :
Outer protective wrapping
Material :
Carbon Steel,metal
Type :
Wrapping machine
Name :
Steel wire coil packing machine
Description

Trolley Type Vertical Strand Coil Packaging Machine GD800 60r/min Electric Driven

Trolley Type Vertical packaging machine summarize:

The automatic wire wrapping machine made by Shanghai Jinglin is designed mainly for coiled objects especially for steel coils, wire coils,copper coils,pipe coils,etc. It can effectively protect your products and play a role of waterproof, dustproof, antirust, anti-damaging,anti-aging. The machine can not only help you save the labor force, save space in your warehouse, improve your working efficiency,but also can well decorate your package objects.

Trolley Type Vertical Packaging Machine​ application:

  • Steel wire coil
  • Galvanized Iron wire coil
  • Pre-stressed wire coil
  • Stainless wire coil
  • Copper wire coil
  • Razor wire coil
  • Binding wire coil
  • Wire rod

Trolley Type Vertical Packaging​ Machine features:

  • Scientific design, high packing efficiency with less energy and material consumption.
  • Moving trolley for safe handling and loading the wire coils.
  • PLC adopted for automatic program control.HMI for simple operation.
  • Overlapping degree and tension of the wrapping material tension can be adjusted.
  • The ring&roller speed can be adjusted through the converters.
  • Ring height of the wrapper could be adjusted for different wire ID&OD.
  • Anti-wearing polyurethane is adopted for the friction wheel.
  • The carrier rollers and protective rollers are wrapped with poly urethane.
  • Indication lights alarm automatically upon trouble occurs.
  • Soft start, soft stop and precise reset of the ring.

Trolley Type Vertical Packaging Machine​Machine​ parameters

Model GD300 GD600 GD800
Coil width ≤300 150mm-600mm 400mm-800mm
Coil OD ≤1500 800mm-1600mm 1000mm-1900mm
Coil ID 508/610mm 508mm/610mm 508mm/610mm
Coil weight ≤2000Kg 300kg-6000Kg 1000Kg-12000kg
Ring speed Appr. 20-90r/min Appr. 20-80r/min Appr. 20-60r/min
Roller speed 5-8m/min 5-8m/min 5-8m/min
Power output 2.0KW 3.5KW 4.5KW
Power supply AC/380V/50Hz AC/380V/50Hz AC/380V/50Hz
Air supply 6-8kgf/cm2 6-8kgf/cm2 6-8kgf/cm2
Packing material

Knit tape/compound paper/VCI paper/etc:

width:80-100mm; ID:55mm;

OD≤500mm

Knit tape/compound paper/VCI paper/etc:

width:80-100mm; ID:55mm;

OD≤500mm

Knit tape/compound paper/VCI paper/etc:

width:80-100mm; ID:55mm;

OD≤500mm

Stretch film:

width:80-100mm; ID:50mm;

OD≤150mm

Stretch film:

width:80-100mm; ID:50mm;

OD≤150mm

Stretch film:

width:80-100mm; ID:50mm;

OD≤150mm
Synchronous wrapping system Optional Optional Optional
Automatic manipulator Optional Optional Optional

Note: the datas are only for reference, the machine can be custom designed according to specific object size.
