4-9m/Min Door Shrinking Packing Machine Width 1200mm Full Packaging Power Supply 380V
4-9m/Min Door Shrinking Packing Machine Width 1200mm Full Packaging Power Supply 380V
4-9m/Min Door Shrinking Packing Machine Width 1200mm Full Packaging Power Supply 380V
4-9m/Min Door Shrinking Packing Machine Width 1200mm Full Packaging Power Supply 380V
Specifications
Brand Name :
jlpack
Model Number :
Customized
Certification :
ISO9001，CE
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
200 sets/Year
Delivery Time :
Stand alone 1 week,the packing line 150 days
Packaging Details :
Wooden case /standard container
Application :
Wood,window and etc.
Name :
Panel shrinking wrapping machine
Control system :
PLC control
Material :
Carbon steel
Packing object size :
L: 2500mm,W: 1200mm,H: 50mm
Spindle power :
3kw
Working area :
1200*2400mm
Voltage :
220V/380V/50HZ
Condition :
New
Warranty :
1 year
Description

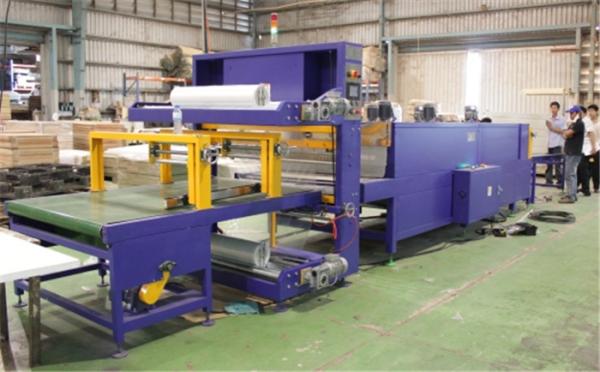

4-9m/min Door Shrinking Packing Machine Width 1200mm Full packaging Power Supply 380V

The alias: PLC control door heat sealing and shrinking packing machine line​

BASIC FEATURES OF THE MACHINE:

  • Adopts photo electricity for inducing the products for fix the position.
  • Two feed-in modes, auto/manual can be choosing.
  • Constant temperature heat sealing and cutting system is suitable for PE, POF and industrial standard shrink films.
  • The sealing width is adjustable for different products.
  • The front feed-in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.
  • Hi-speed hot air circulating shrink tunnel.
  • Sealing system: permanently heated seal bar with easy-exchangeable sealing blade without odorous, temperature controlled and detected by PLC.

TECHNICAL PARAMETERS:

SEALING PART

Control PLC
Structure Material Carbon steel
Packing object size Length: 2500mm,Width: 1200mm,Height: 50mm
Packing object Weigh ≤100kg
Working table height About 800mm
Conveyor speed

About 4-9m/min
Packaging type Full packaging
Packing material PE film
Sealing part power consumption About 4KW
Power Supply 380V
Air Supply 6~8kgf/cm2

Basic configuration:

Converter: Siemens; Transducer: Autonics

Contactor: Schneider; Switch; button: Schneider

Motor: Tunglee/YK; Cylinder: Airtac
